Description

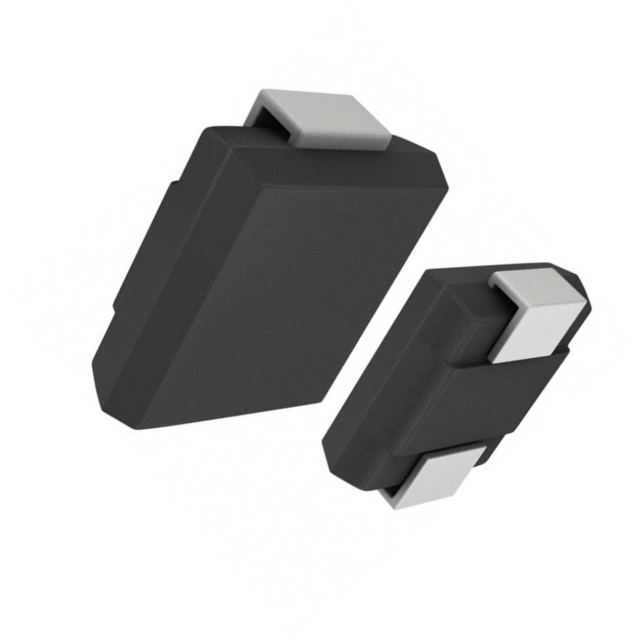

M4 Slkor Standard Diode 400V 1A 5 µA @ 400 V Standard Recovery >500ns, > 200mA (Io) Surface Mount DO-214AC (SMA)
Voltage-DCReverse(Vr)(Max): 400V
Current-AverageRectified(Io): 1A
Voltage – Forward (Vf) (Max) @ If: 1.1 V @ 1 A
Capacitance @ Vr, F: 13pF @ 4V, 1MHz
Operating Temperature: -55°C ~ 150°C
Package / Case: DO-214AC, SMA
Technology: Standard Diode
Manufacturer Part #: M4
Manufacturer: Slkor
Datasheet: M4%20SMA.PDF
