Description

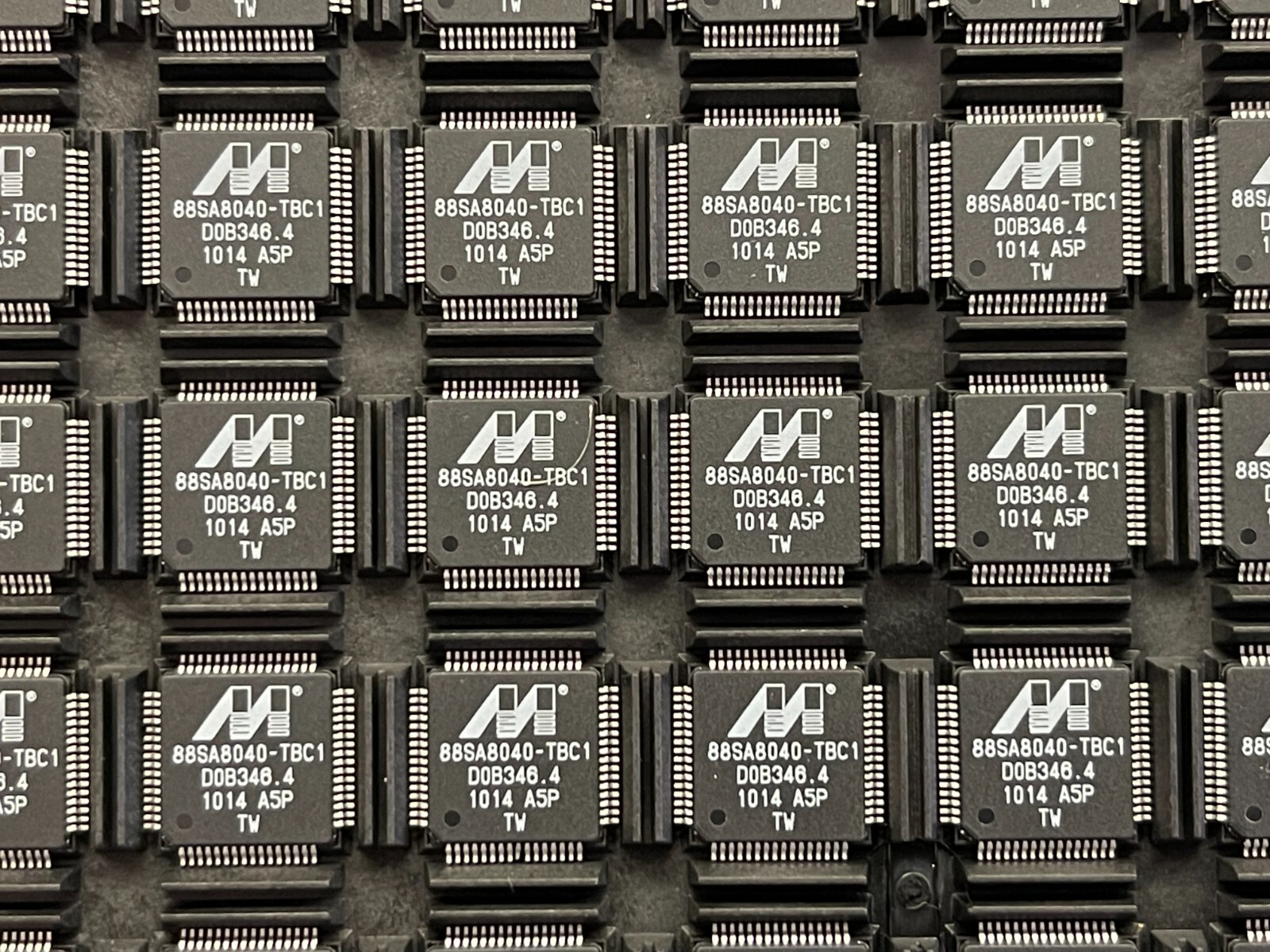

Marvell Semiconductor Analog ICs / Interface 88SA8040-B1-TBC1C000 IC PATA/ATAPI TO SATA BRIDGE CHIP W/ATAP TQFP-64 RoHS
Technical Specifications
Serial ATA to Parallel ATA Bridge :
Serial ATA:
Compliant with Serial ATA 1.0
Serial ATA Hot-Plug
Serial ATA II Set Features for Disabling Device-Initiated Serial ATA Power Management.
Enhanced Receiving FIFO Flow Control for Serial ATA Link.
Transfer Rate:
Supports PIO and DMA modes
Supports bus master DMA at 1.5Gbps burst rate
Serial ATA Connector:
One Signal Plug Port
Parallel ATA:
ATA/ATAPI PIO Mode Data Transfer
ATA/ATAPI UDMA Data Transfer rates of 16.7, 25, 33, 44, 66, 100, 133 and 150MB/s.
ATA/ATAPI Packet Command Feature Set.
INF-8090i Packet Commands.
ATA/ATAPI-7 Streaming Feature set.
ATA/ATAPI-7 Force Unit Access Commands.
ATA/ATAPI 48-bit Address Feature set.
Parallel ATA Connector:
Female IDC 2X20 pin Connector
DC Power Connector:
Mini 4-pin floppy type power connector
Direct Connect Vertical type
Manufacturer Part Number: 88SA8040B1-TBC1C000
