MAX3232CDR Texas Instruments

MAX3232CDR Texas Instruments RS-232 Interface IC 3-5.5V Mult-Ch RS232

MAX3232CDR Texas Instruments IC MAX3232 RS232 TRANSCEIVER DUAL SOIC 16N RoHS

ENQUIRY!
SKU: MAX3232CDR Categories: , Tags: , Brand:

Description

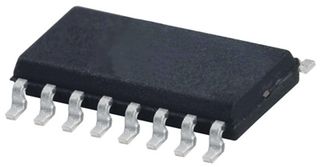

TEXAS INSTRUMENTS MAX3232CDR Dual Driver Line, RS232 Transceiver, 3V-5.5V in, SOIC-16 2/2 Transceiver Full RS232

The MAX3232CDR is a Multichannel RS-232 Line Driver/Receiver with ±15kV ESD protection. This device consists of two line drivers, two line receivers and a dual charge-pump circuit with ±15kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3 to 5.5V supply. The devices operate at data signalling rates up to 250kbps and a maximum of 30V/µs driver output slew rate.
  • Two drivers and two receivers
  • 300µA Typical low supply current
  • 4 x 0.1µF External capacitors
  • Alternative high-speed terminal-compatible devices
  • Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Specifications

Manufacturer: Texas Instruments
Product Category: RS-232 Interface IC
RoHS: RoHS Compliant
Function: Transceiver
Data Rate: 250 kb/s
Number of Drivers: 2 Driver
Number of Receivers: 2 Receiver
Duplex: Full Duplex
Supply Voltage – Max: 5.5 V
Operating Supply Voltage: 3.3 V, 5 V
Supply Voltage – Min: 3 V
Operating Supply Current: 1 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Mounting Style: SMD/SMT
Package / Case: SOIC-16
Packaging: Reel
Series: MAX3232
Brand: Texas Instruments
Height: 1.58 mm
Length: 9.9 mm
Product: RS-232 Transceivers
Factory Pack Quantity: 2500
Supply Type: Single Supply
Width: 3.91 mm
Unit Weight: 0.004998 oz
Manufacturer Part Number: MAX3232CDR
Manufacturer: Texas Instruments
