Description

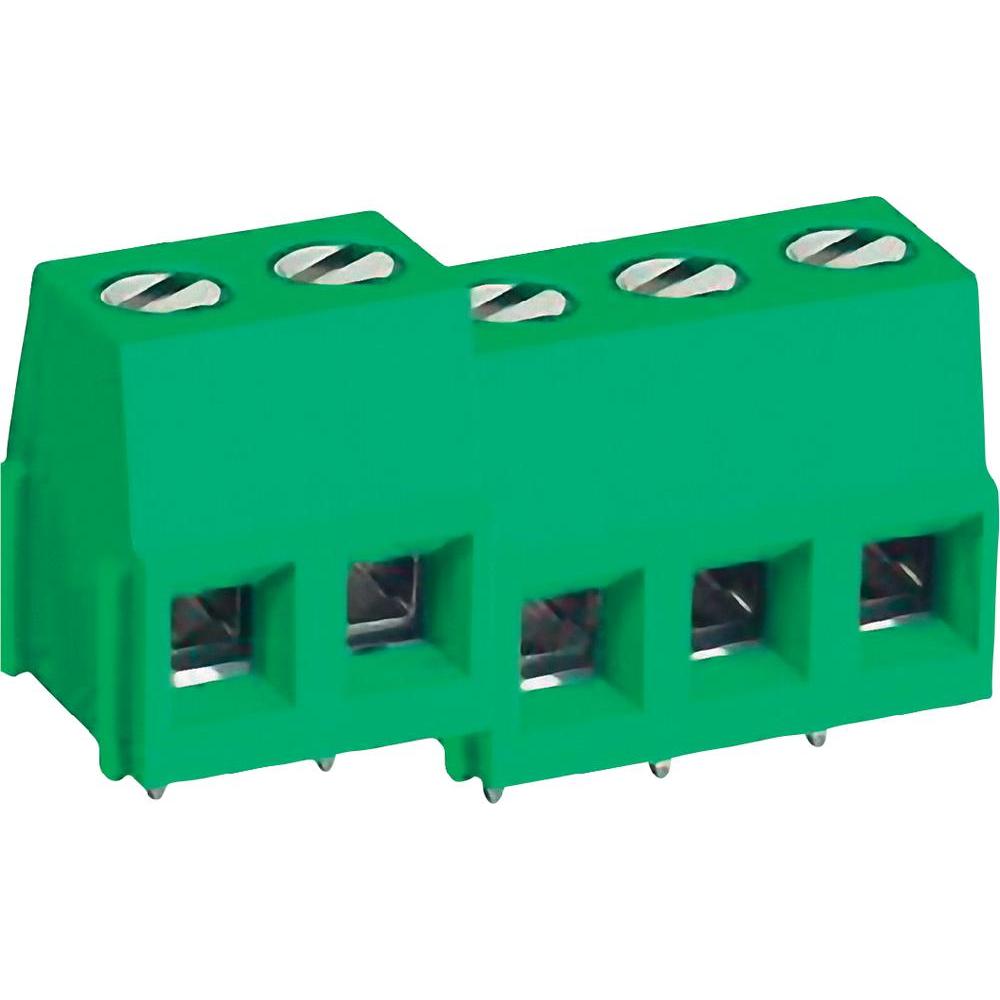

MB310-750M03 DECA Green Screw terminal 3.30 mm2 Number of pins 3
Highlights & details
- Green
- Number of pins 3
- Screw terminal, Print
Technical data
| Category | Screw terminal |
|---|---|
| CS | 7.50 mm |
| No. of rows | 1 |
| Pins per row | 3 |
| Number of pins | 3 |
| Series | MB |
| Min. stripping length | 4 mm |
| Max. stripping length | 5 mm |
| Connection | Screw terminal, Print |
| Cross section (flexible) (min.) | 0.13 mm² |
| Cross section (inflexible) (min.) | 0.13 mm² |
| Cross section (flexible) (max.) | 3.30 mm² |
| Cross section (inflexible) (max.) | 3.30 mm² |
| AWG (min.) | 26 |
| Connector orientation | Parallel (to the PCB) |
| AWG max. | 12 |
| Contact material | Brass tin plated |
| Enclosure material | Polyamide 66 |
| Colour | Green |
| Wire protection | Yes |
| Height | 12.60 mm |
| Nominal voltage | 300 Vac |
| Length | 10.20 mm |
| Width | 15.00 mm |
| Pitch | 7.5 mm |
| Number of contacts | 3 |
| AWG | 26 – 12 |
| Type | MB310-750M03 |
| Content | 1 pc(s) |
| Nominal current | 16 A |
| Manufacturer part No. | MB310-750M03 |
Manufacturer:Deca Switchlab
Datasheet:001188447-da-01-RM_7_5_MM.pdf
