Description

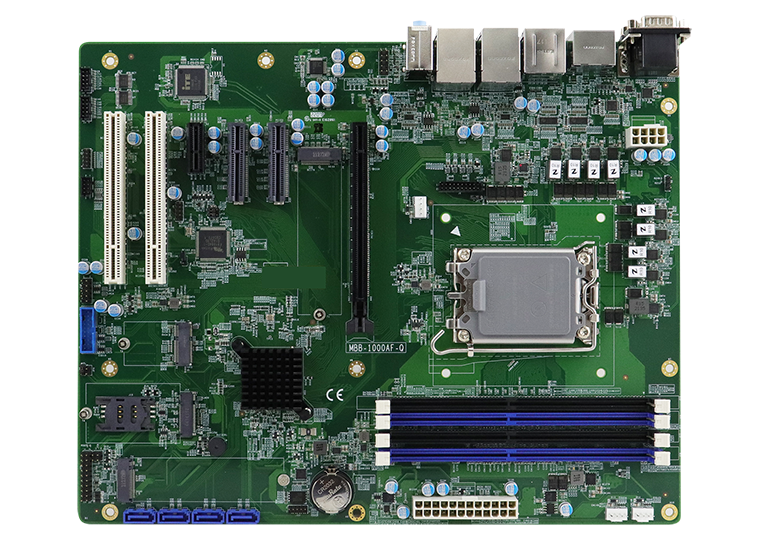

MBB-1000AF-Q IBASE ATX Motherboard with 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors
The IBASE Embedded MBB-1000 ATX Motherboard, powered by 12th Gen Intel® Core™ processors, is engineered for long-term reliability in graphics-intensive applications such as AIoT, digital signage, and medical imaging. With up to 8 P-cores and E-cores, it delivers enhanced performance and supports four 4K independent displays. Connectivity options include 5G/4G/LTE and WiFi 6E, ensuring seamless communication in diverse environments. Featuring extensive I/O interfaces, high-speed DDR4-3200 RAM support, and multiple expansion slots, the IBASE Embedded MBB-1000 ATX Motherboard offers flexibility and scalability for various embedded computing needs.
The latest Intel processors integrate up to 8 P-cores and E-cores, drives up to 1.35x times faster in performance with enhanced Intel® Iris® Xe graphics engine. The MBB-1000 supports four 4K independent displays with 1x HDMI (2.0b), 1x DVI-D, and 2x DisplayPort 1.4a (DP++). It features 5G/4G/LTE connectivity with a 5G-compatible M.2 B3052 socket and discrete WiFi 6E with the new frequency band ranging from 5.925 to 7.125 GHz. The board comes with four high-speed DDR4-3200 RAM sockets with a total capacity of 128GB and extensive I/O interfaces with 2x Intel® 2.5G LAN, 10x USB ports, 4x SATA III, 4x serial ports, and multiple expansion slots including 1x PCI-E(x16), 2x PCI-E(x4), 1x PCI-E(x1), 2x PCI, and 4x M.2 slots.
Features
Intel® Core™ Processors: Powered by 13th/12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processors
Enhanced Graphics Performance: Supports up to four 4K independent displays with Intel® Iris® Xe graphics engine
Connectivity: Includes 5G/4G/LTE connectivity and discrete WiFi 6E for seamless communication
Extensive I/O Interfaces: Features 2x Intel® 2.5G LAN, 10x USB ports, 4x SATA III, and 4x serial ports
Scalability: Multiple expansion slots, including PCI-E(x16), PCI-E(x4), PCI-E(x1), PCI, and M.2 slots, provide scalability for diverse applications
Specs: MBB-1000AF Series
