Description

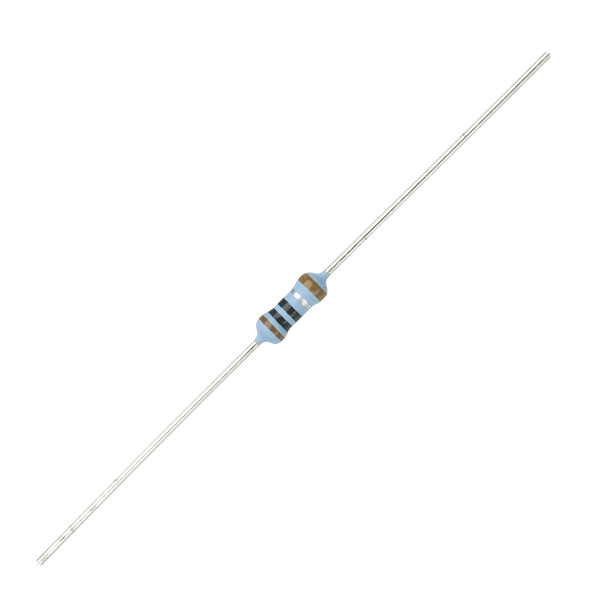

MBB02070C3601FC100 Vishay BCcomponents Resistor 3.6Kohm 3k6 1% 0.6W metal film resistor from the BC components MRS25 series. Industry standard, high quality,high power and with low noise. Suitable for all general purpose applications.
Technical Specification
| Power rating | 0.6W at 70°C (derate to zero at 155°C) | |
| Resistance range | 1Ω to 10MΩ | |
| Tolerance | ±1% | |
| Max. working voltage | 350V | |
| Max. overload voltage | 700V | |
| Max. temperature coefficient | 50ppm/°C (1R, 2R2, 4R7 100ppm) | |
| Temperature range | –55°C to +155°C | |
| Dimensions: | body | 6.5 x 2.5mm |
| leads | 0.6 x 26mm |
Manufacturer Part Number: MBB02070C3601FC100
Manufacturer: Vishay/BC Components
