Description

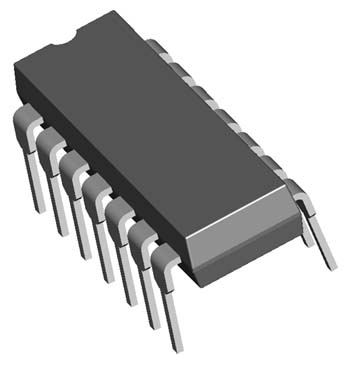

MC1488N Signetics RS-232 Interface Integrated Circuit PDIP-14 MC1418F
The MC1488N is a monolithic quadruple Line Driver designed to interface data terminal equipment with data communications equipment in conformance with ANSI EIA/TIA-232-E using a diode in series with each supply voltage terminal.
- Meets or exceeds the requirements of ANSI EIA/TIA-232-E and ITU recommendation V.28 standards
- 10mA Typical current-limited output
- 300 Minimum power-off output impedance
- Slew rate control by load capacitor
- Flexible supply-voltage range
- Input compatible with most TTL circuits
ESD sensitive device, take proper precaution while handling the device.
Manufacturer Part Number: MC1418F
Manufacturer: Philips
