Description

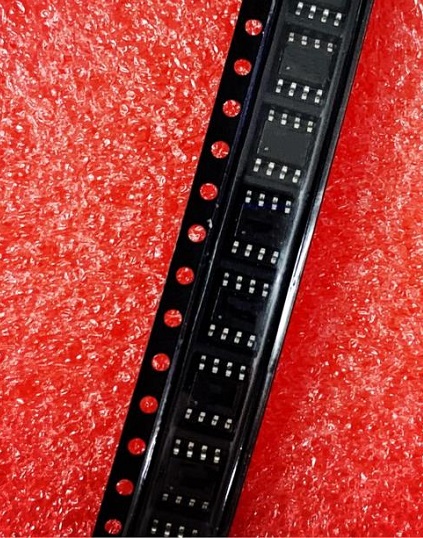

MC33178DR2G ON Semiconductor Operational Amplifiers – Op Amps 2-18V Dual Low Power Industrial Temp 5MHz 100 kHz, 8-Pin SOIC RoHS
Specifications
Manufacturer: onsemi
Product Category: Operational Amplifiers – Op Amps
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Number of Channels: 2 Channel
Supply Voltage – Max: 36 V, +/- 18 V
GBP – Gain Bandwidth Product: 5 MHz
Output Current per Channel: 80 mA
SR – Slew Rate: 2 V/us
Vos – Input Offset Voltage: 3 mV
Supply Voltage – Min: 4 V, +/- 2 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Ib – Input Bias Current: 500 nA
Operating Supply Current: 900 uA
Shutdown: No Shutdown
CMRR – Common Mode Rejection Ratio: 80 dB
en – Input Voltage Noise Density: 8 nV/sqrt Hz
Series: MC33178
Packaging: Reel
Packaging: Cut Tape
Amplifier Type: Low Power Amplifier
Brand: onsemi
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Height: 1.5 mm
In – Input Noise Current Density: 0.33 pA/sqrt Hz
Length: 5 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2 V
Operating Supply Voltage: 4 V to 36 V, +/- 2 V to +/- 18 V
Product: Operational Amplifiers
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 80 dB
Pack Quantity:2500
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: Bipolar
Vcm – Common Mode Voltage: Negative Rail + 2 V to Positive Rail – 2 V
Voltage Gain dB: 106.02 dB
Width: 4 mm
Unit Weight: 0.019048 oz
Manufacturer:Electronic Components
Datasheet:on-semi/MC33178-D.pdf
