Description

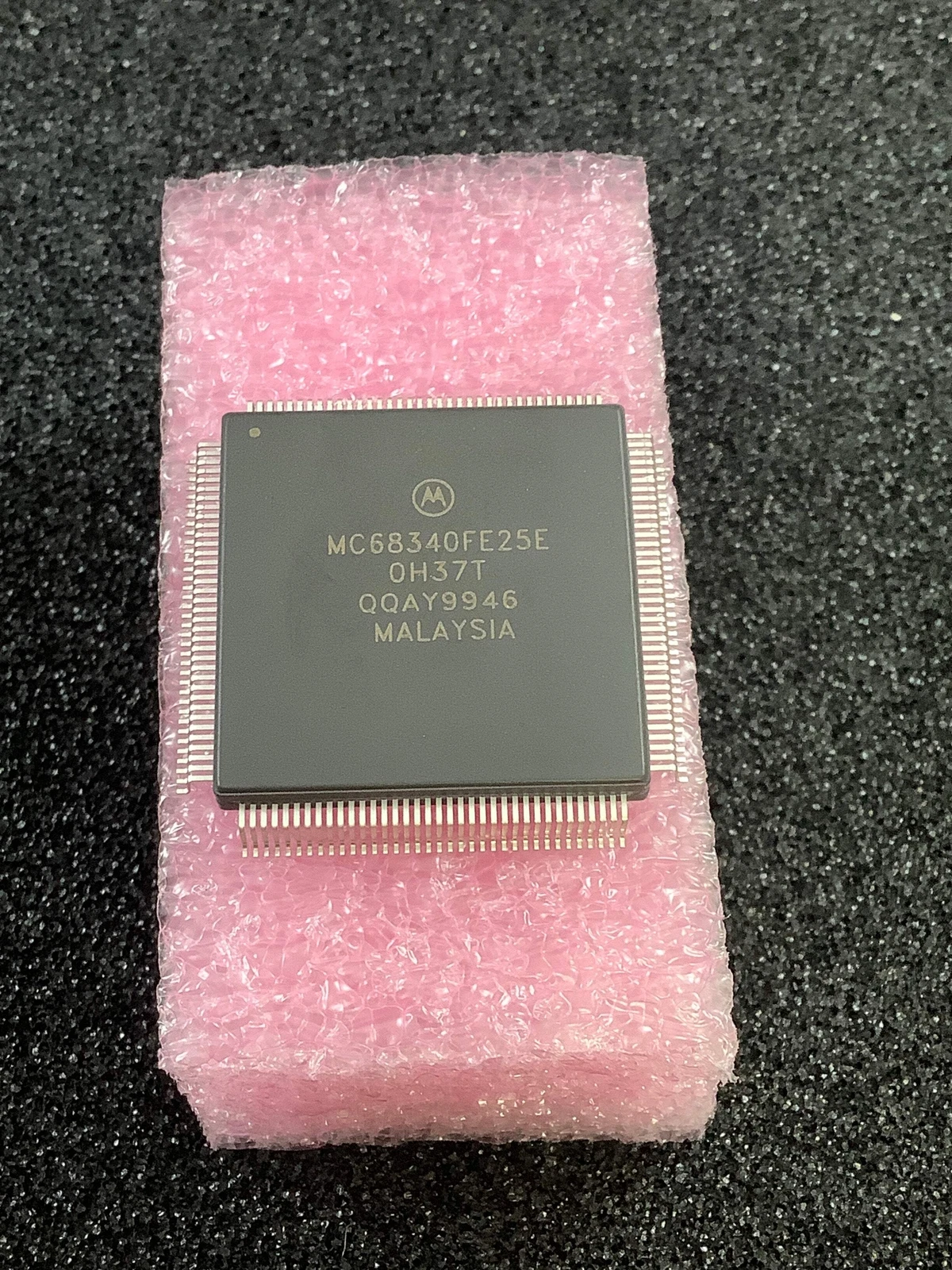

NXP MC68340FE25E CPU32 Microprocessor CPU32 Microprocessor IC M683xx 1 Core, 32-Bit 25MHz 144-CQFP
The MC68340 is a high-performance 32-bit integrated processor with direct memory access (DMA), combining an enhanced M68000-compatible processor, 32-bit DMA, and other peripheral subsystems on a single integrated circuit. The MC68340 CPU32 delivers 32-bit CISC processor performance from a lower cost 16-bit memory system. The combination of peripherals offered in the MC68340 can be found in a diverse range of microprocessor-based systems, including embedded control and general computing. Systems requiring very high-speed block transfers of data can especially benefit from the MC68340.
Manufacturer: NXP
Product Category: Microprocessors – MPU
Core: M68000
Number of Cores: 1 Core
Data Bus Width: 32 bit
Maximum Clock Frequency: 25.16 MHz
Package / Case: CQFP-144
Operating Supply Voltage: 3.3 V
Series: MC68340
Mounting Style: SMD/SMT
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Packaging: Tray
Brand: NXP Semiconductors
I/O Voltage: 3.3 V
Number of Timers/Counters: 2 Timer
Processor Series: M68000
Product Type: Microprocessors – MPU
Subcategory: Microprocessors – MPU
Watchdog Timers: Watchdog Timer
Unit Weight: 0.285245 oz
Datasheet: MC68340
