Description
Southwire 55879301 MCAP All Purpose Cable Aluminum Armor (2) 12 AWG Conductor Yellow and Grey 250 ft. Coil

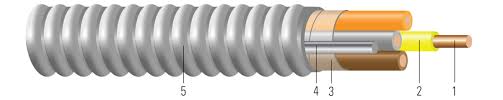

Construction
Conductor:Solid or 19 strands class C compressed copper per ASTM B3 and ASTM B8
Insulation:All phases are insulated with Polyvinyl Chloride with Nylon Sheath Type THHN/THWN
Binder:Mylar tape
Ground:Full-sized bare 8000 series aluminum grounding/bonding conductor. Armor and bare aluminum conductor form the equipment ground path.
Armor:Aluminum Interlocked Armor
Specifications
Cond. Size 12 AWG
Conductor Number 2
Color YW,GY
Diameter Over Conductor (in) 0.090 inch
Cond. Strands 19
Insulation Thickness (mils) 20 mils
Diameter Over Armor (in) 0.507 inch
Approx. Weight (lbs/1000′) 95 lbs/1000′
TBA stock codes are estimations only and actual product may vary. Please wait until a stock code is assigned to purchase connectors and/or fittings.
