Description

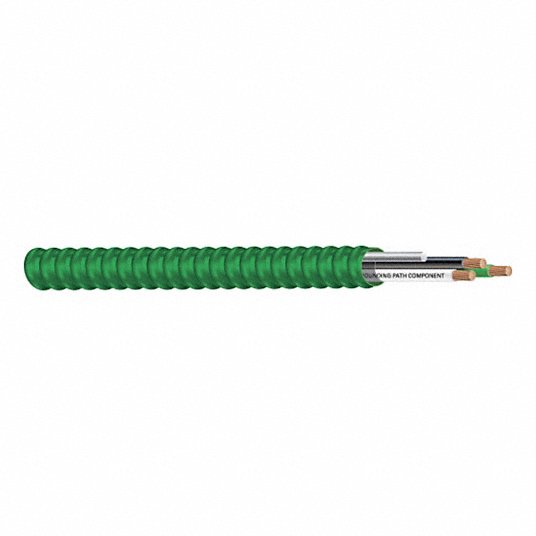

Southwire 55636101 MCAP All Purpose Hospital Care Facility Cable (2) 12 AWG Conductor Black White and Green 250 ft. Coil
HCF MCAP® all purpose hospital care facility cable has (2) 12 AWG copper conductors. Cable has aluminum armor and is packaged in a 250 ft. Coil. Cable is black, white and green.
Construction
Conductor:Solid or 19 strands class C compressed copper per ASTM B3 and ASTM B8
Insulation:All phases are insulated with Polyvinyl Chloride with Nylon Sheath Type THHN/THWN
Binder:Mylar tape
Ground:A Green insulated Polyvinyl Chloride with Nylon Sheath Type THHN/THWN ground. Redundant grounding provided by a bare 8000 series aluminum grounding/bonding conductor and armor.
Armor:Green Aluminum Interlocked Armor
Specifications
Cond. Size 12 AWG
Conductor Number 2
Color BK,WE,GN
Diameter Over Conductor (in) 0.088 inch
Cond. Strands 19
Insulation Thickness (mils) 20 mils
Ground Size 1×10
Diameter Over Armor (in) 0.534 inch
Approx. Weight (lbs/1000′) 123 lbs/1000′
Type Metal Clad Cable
Armor Aluminum
Conductor Size 12 AWG
Conductor Material Bare Copper
Jacket Material Aluminum
No. of Conductors 2
Solid/Stranded Stranded
Wire Colors Black, White and Green
Length 250 ft.
