Description

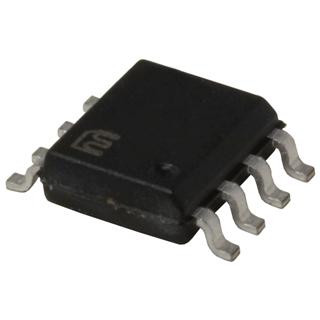

MICREL MIC4680-5.0BM Buck-Boost Switching Regulator Conv DC-DC Single-OUT Step Down 4V to 34V-IN 8-Pin SOIC
Buck, Buck-Boost Switching Regulator IC Positive Fixed 5V 1 Output 1.3A 8-SOIC (0.154″, 3.90mm Width)
Categories Integrated Circuits (ICs)
PMIC – Voltage Regulators – DC DC Switching Regulators
Manufacturer Microchip Technology
Series SuperSwitcher™
Packaging Tube
Function Step-Down, Step-Up/Step-Down
Output Configuration Positive
Topology Buck, Buck-Boost
Output Type Fixed
Number of Outputs 1
Voltage – Input (Min) 4V
Voltage – Input (Max) 34V
Voltage – Output (Min/Fixed) 5V
Current – Output 1.3A
Frequency – Switching 200kHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154″, 3.90mm Width)
Supplier Device Package 8-SOIC
Manufacturer:Micrel
Datasheet:mic4680.pdf
