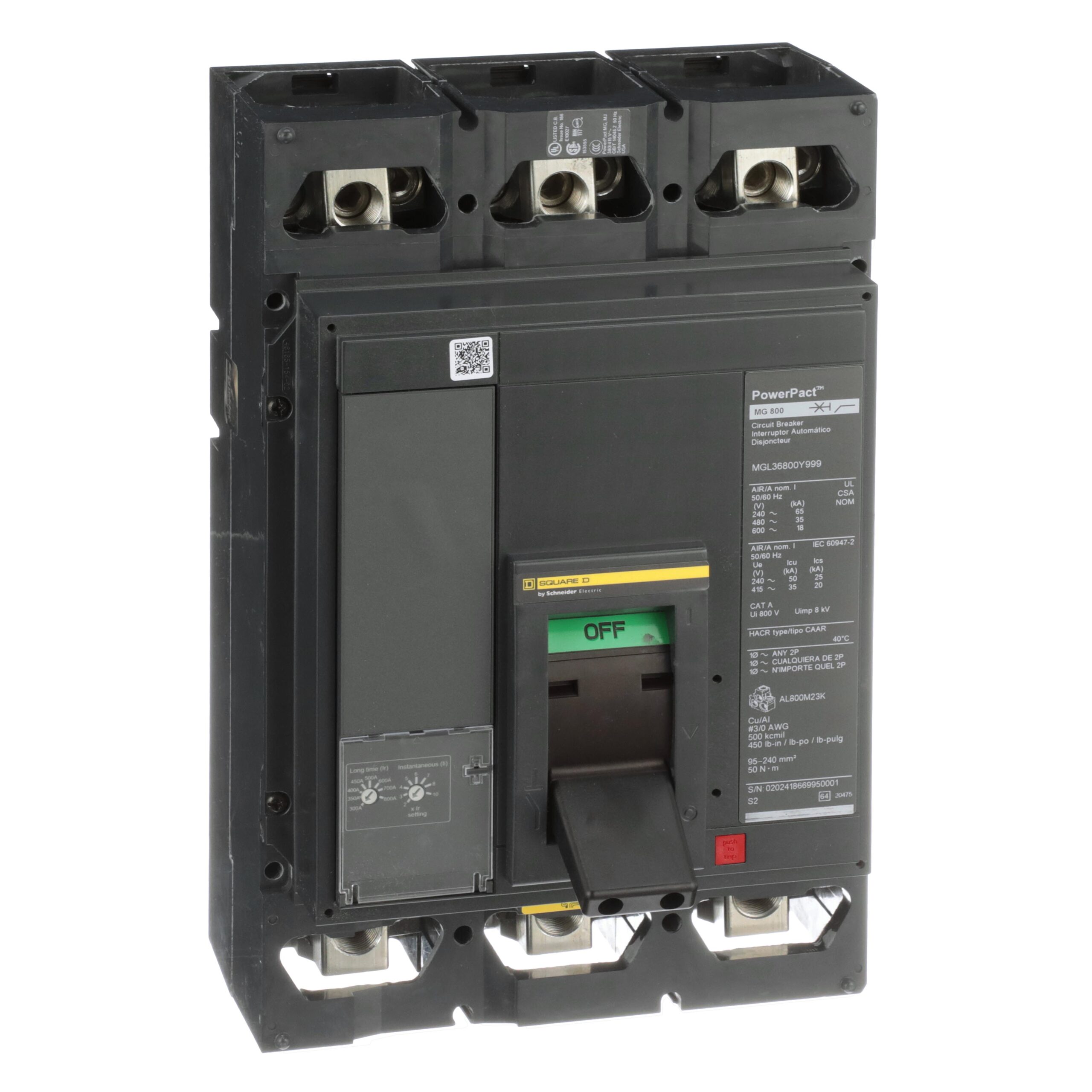

MJL36800 Schneider Electric Molded Circuit Breaker 600V 800A Lever

MJL36800 Schneider Molded Circuit Breaker 600V 800A Lever

Please call 800-717-6475 to check current stock and pricing.

Schneider Electric MoldedPowerPact Chassis Mount Square D MJL36800 is a 3 Pole solid state molded case circuit breaker with a current rating of 800 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC, 100kAIC at 240VAC. The MJL36800 has a feed-thru connection type and includes long time and instantaneous trip functions.

SKU: MJL36800 Categories: , Tag: Brand:

Description

MJL36800 Schneider Electric Molded Solid State Circuit Breaker 600V 800A Chassis Mount Lever 3-Poles CSA, UL
Amps 800 Amp
Breaker Interrupt Rating 1 100KA @ 240VAC
Breaker Interrupt Rating 2 65KA @ 480VAC
Breaker Interrupt Rating 3 25KA @ 600VAC
Breaker Line Side Term Method Lugs
Category Circuit Breakers, Square D by Schneider Electric
Circuit Breaker Type MCCB
Frame M
Height 12.86
In Stock Yes
Length 8.05
Manufacturer Square D by Schneider Electric
Number of Poles 3 Pole
Product Description 600V, 800Amp, 3-Pole
Trip Type Electronic
UNSPSC 39121616
UPC 785902000000
Volts 600V
Width 8.27
Manufacturer: Square D
Amperage: 800
Voltage: 600
Voltage Type: AC
Poles: 3
Frame Type: MJL
UPC: 785901655398
65kAIC@480V
Feed-Thru
3 Phase
Long Time and Instantaneous Trip Functions
Solid State
Powerpact
Current Limiting
Non-Interchangeable 1.0 Trip
Line & Load Side Lug Terminals

Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Lever
VoltageRating: 600V AC
Current Rating: 800A (Amps)
Package: Box
