Description

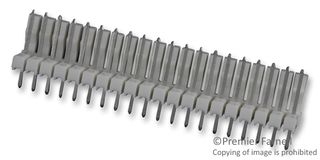

MLSS100-9-C PANCON / ITW CONNECTOR UNSHROUDED HEADER HDR 9 POS 2.54MM SOLDER ST THRU-HOLE RoHS
| Agency Cert | cULus |
| Product Family | Pancon Connectors |
| Product Name | MAS-CON® .100″ IDC Wire to Board Connector System |
| Brand Name | Locking Headers – Straight |
| Rohs Status | COMPLIANT |
| Comp Type | Header |
| Term Method | Solder |
| Contact Material | Copper Alloy |
| Contact Plating | Bright Tin over Nickel |
| Housing Material | Thermoplastic |
| Dielectric Voltage | 2.0 KVAC Min. |
| Flammability | UL 94 V-0 |
| Insulation Resistance | 5,000 Megohms Min |
| Packaging Type | Bag |
| Standard Pack Size | 100 |
| Product Specification | PS 1005 |
| Sales Drawing | KA-10148.pdf |
| Stackable | YES |
| Polarized To Mating Part | YES |
| Lock To Mating Part | YES |
| Polarization | YES |
| Breakaway | NO |
| Current Max Per Contact | 4.0 amps |
| Voltage Max | 300 volts |
| Num Rows | 1 |
| Pitch Mating | .100″ |
| Pc Tail Length | .140″ |
| Spacing | .100″ |
| Gender | Male |
Manufacturer Part Number: MLSS100-9-C
Manufacturer: ITW
