Description

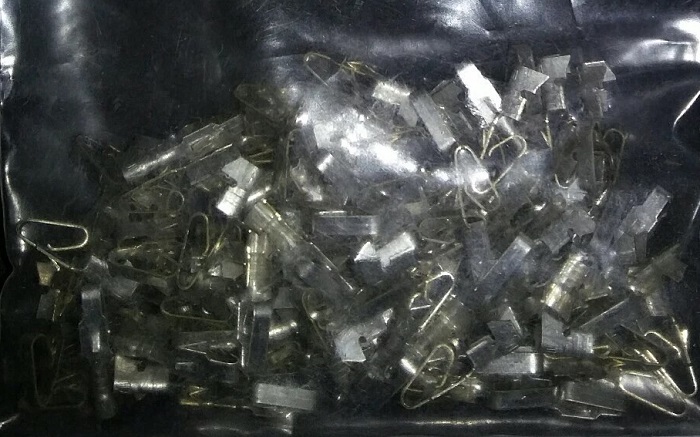

MOLEX 08-50-0189 Connector Contact Female 1 Position Crimp Straight Cable Mount Loose Piece, CRIMP TERMINAL UTIL M6838-1 COMM 3.96mm Pitch KK, Crimp Terminal, 18-20 AWG,Tin Plating
<br >Molex KK 396 Connector System<br >Delivering 7.0A and 600V per circuit in an industry-standard 3.96mm pitch, power application KK® 396 connectors are ideal for low- to mid-power wire-to-board and board-to-board applications. Power application KK® 396 connectors are ideal for use in industries such as automotive, medical and consumer. Dual-cantilever terminals offer a square-post contact area that interfaces with the male pin header through a spring-like contact. Available in 18 to 24 AWG wire, anti-fishing options are available to protect the wire during cable assembly.<br ><br >MarKK™ terminals are used to provide a high-force interface, ensuring a solid-performing contact for power applications up to 7.0A and 600V per circuit. KK 396 headers are available in single-row, unshrouded through-hole PCB termination styles in solid and breakaway varieties. A friction lock is available for a more secure mating interface and kinked PC tails ensure contact with the PCB during solder processing.<br ><br ><br >KK 396 PCB receptacles are available in right-angle, top-entry and board-through configurations. Housings have built-in polarization features and are available in UL 94V-2 and UL 94V-0 nylons.
Product Category: Headers & Wire Housings
RoHS:
Product: Contacts
Mounting Style: Cable Mount / Free Hanging
Termination Style: Crimp
Contact Gender: Socket (Female)
Contact Plating: Tin
Series: 6838
Tradename: KK
Wire Gauge: 20 AWG to 18 AWG
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 80 C
Packaging: Bulk
Brand: Molex
Contact Material: Tin
Current Rating: 5 A
Product Type: Headers & Wire Housings
Subcategory: Headers & Wire Housings
Voltage Rating: 250 V
Part # Aliases: 8500189 6838-(P909)L 08-50-0189-PB 0008500189
Unit Weight: 0.006843 oz
Manufacturer:Molex
Datasheet:0008500189_CRIMP_TERMINALS-156226.pdf
