Description

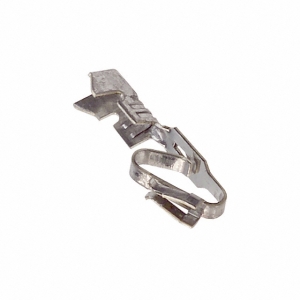

MOLEX 08-50-0189 Contact, KK® Trifurcon™, 6838 Series, Socket, 20 AWG, 18 AWG, Crimp, Brass
Locking tangs on terminals
Reflow matte tin plating
Polarizing ribs on housings
Friction lock headers; friction lock ramp housings
Polarizing back walls
RPC (Reflow Process Compatible) Connector System
High-temperature nylon housing
Signal Applications (KK 254 Connector System)
Power Applications (KK 396 Connector System)
Category Crimp Terminals
Series 6838
Application Power
Overview KK® Interconnect System – Molex
Product Name KK® 396, Trifurcon™
UPC 800753614482
Physical
Gender Female
Material – Metal Brass
Material – Plating Mating Tin
Material – Plating Termination Tin
Net Weight 0.194/g
Packaging Type Bag
Plating min – Mating 2.540µm
Plating min – Termination 2.540µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 2.79mm max.
Wire Size AWG 18, 20
Manufacturer Part Number: 8500189
Molex
