Description

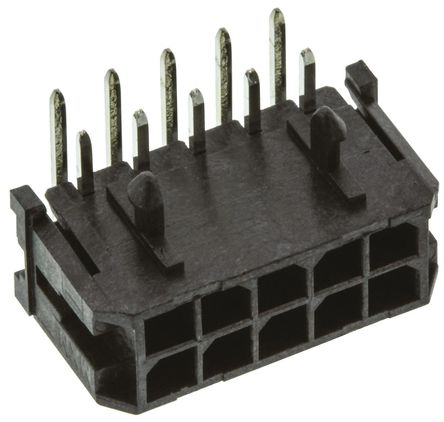

43045-1000 Molex PLUG & SOCKET CONNECTOR, HEADER, 10 POSITION, 3MM, Series:Micro-Fit 3.0, Pitch Spacing:3mm, Contact Termination Type:Through Hole, No. of Contacts:10, No. of Rows:2, Connector Mounting:PCB, Gender:Header, Contact Material:Brass , RoHS
Suitable for board-to-wire applications. Headers designed to mate with receptacles populated with female contacts.
Molex Micro-Fit 3.0 Series
A unique interconnect system on 3·0mm grid spacing, capable of carrying 5A and incorporating many features previously found on larger power connectors. This rugged series of single and dual row, high density wire-to-wire (free or via a panel) and wire-to-board connectors are suitable for many signal applications.
Fully isolated contacts
Positive latching
Compact size
Full polarisation
| Voltage rating | 250V a.c. (rms) or 176Vd.c. | Contact resistance | 10mΩ max. |
| Current rating (per contact) | Amps | Insulation resistance | 1000 MΩ min. |
| 20//22 awg | 5 | Dielectric strength | 1500V a.c. |
| 24 awg | 4 | Contact material | Tin plated phosphor bronze |
| 26 awg | 3 | Housing material | Polyester 94V-0 |
| 28 awg | 2 | Header material | High temp LCP |
| 30 awg | 1 |
Application Power, Wire-to-Board
Comments High Temperature, Square Pin, Solder Type
This Molex product is manufactured from material that has the following ratings, tested by independent agencies:
a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13.
b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12.and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition – household and similar electrical appliances – safety, section 30 Resistance to heat and fire.
The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s).
If it is determined during the customer’s evaluation of suitability, that higher performance is required, please contact Molex for possible product options.
Overview Micro-Fit 3.0™ Connectors
Product Literature Order No 987650-5984
Product Name Micro-Fit 3.0™
UPC 800754372121
Physical
Breakaway No
Circuits (Loaded) 10
Circuits (maximum) 10
Color – Resin Black
Durability (mating cycles max) 30
Flammability 94V-0
Glow-Wire Compliant Yes
Mated Height 10.29mm
Material – Metal Brass
Material – Plating Mating Tin
Material – Plating Termination Tin
Material – Resin High Temperature Thermoplastic
Net Weight 1.677/g
Number of Rows 2
Orientation Right Angle
PCB Locator Yes
PCB Retention Yes
PCB Thickness – Recommended 1.60mm
Packaging Type Tray
Pitch – Mating Interface 3.00mm
Plating min – Mating 0.254µm
Polarized to PCB Yes
Shrouded Fully
Stackable No
Surface Mount Compatible (SMC) Yes
Temperature Range – Operating -40°C to +105°C
Termination Interface: Style Through Hole
Manufacturer Part Number: 43045-1000
Molex
