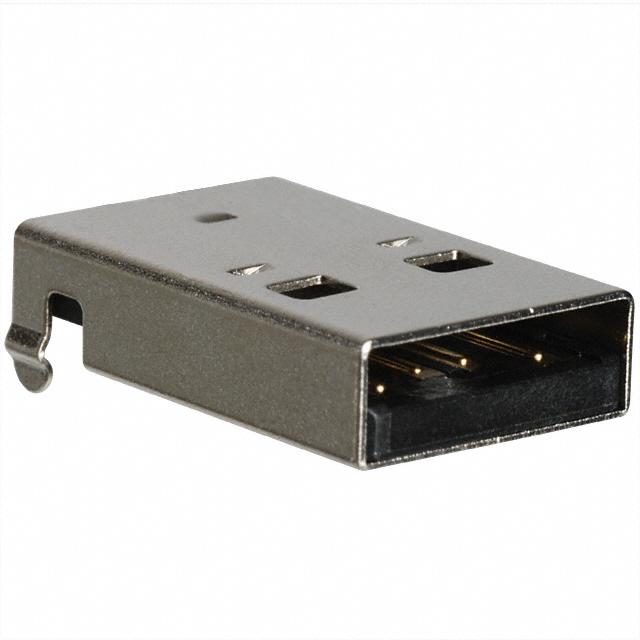

Molex 48037-1000 Universal Serial Bus (USB) Shielded I/O Plug, Type A, Right Angle, Surface Mount, 0.76µm Gold (Au) Plating, PCB Thickness 1.20mm-1.60mm, Tray Package, Lead-Free
Part Detail
Category I/O Connectors
Series 48037
Application Wire-to-Board
Component Type Plug
Overview Consumer USB Products
Product Name USB 2.0
Type A
UPC 822348097975
Physical
Boot Color N/A
Circuits (Loaded) 4
Circuits (maximum) 4
Gender Plug
Keying to Mating Part Yes
Lock to Mating Part Yes
Material – Plating Mating Gold
Material – Plating Termination Tin
Net Weight 2.300/g
Number of Rows 1
Orientation Right Angle
PCB Locator Yes
PCB Retention Yes
PCB Thickness – Recommended 1.20mm, 1.60mm
Packaging Type Tray
Panel Mount Yes
Pitch – Mating Interface 2.00mm, 2.50mm
Pitch – Termination Interface 2.00mm, 2.50mm
Plating min – Mating 0.762µm
Polarized to Mating Part Yes
Polarized to PCB Yes
Ports 1
Surface Mount Compatible (SMC) Yes
Temperature Range – Operating -20°C to +85°C
Termination Interface: Style Surface Mount
Electrical
Current – Maximum per Contact 1.5A
Shield Type Full Shield
Shielded Yes
Voltage – Maximum 150V AC (RMS)
Manufacturer:Molex
Datasheet:Molex/0480371000_IO_CONNECTORS.pdf
