Description

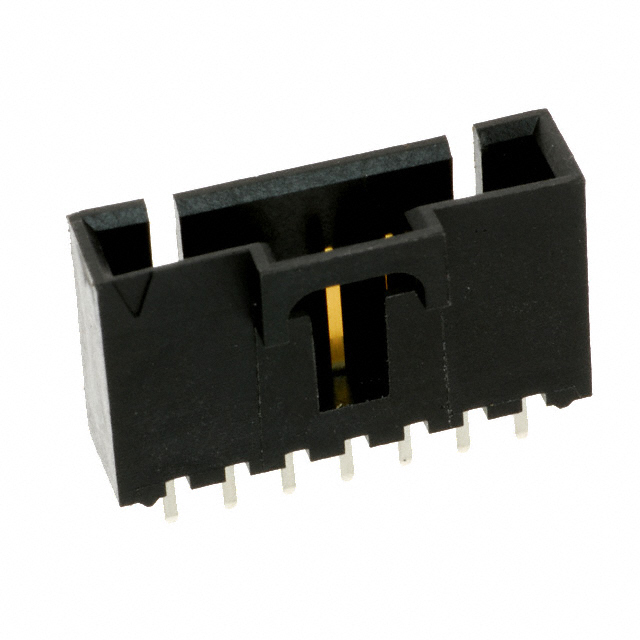

0705430111 Molex, LLC | Connectors, Interconnects | 2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 7 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
Molex 70543-0111 Connector Wire To Board Header 2.54mm Pitch SL™ Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 7 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
Connector Type:Wire-to-Board; Gender:Receptacle; No. of Contacts:7; Pitch Spacing:2.54mm; Contact Termination:Through Hole; Contact Material:Copper Alloy; Contact Plating:Gold; No. of Rows:1
Part DetailCOLLAPSE ALL
Category PCB Headers
Series 70543
Application Signal, Wire-to-Board
Overview SL Modular Connectors
Product Name SL
UPC 800754354103
Physical
Breakaway No
Circuits (Loaded) 7
Circuits (maximum) 7
Color – Resin Black
Durability (mating cycles max) 50
First Mate / Last Break No
Flammability 94V-0
Glow-Wire Capable No
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Material – Metal Brass, Phosphor Bronze
Material – Plating Mating Gold
Material – Plating Termination Tin
Material – Resin High Temperature Thermoplastic
Net Weight 1.270/g
Number of Rows 1
Orientation Vertical
PC Tail Length 3.30mm
PCB Locator No
PCB Retention None
PCB Thickness – Recommended 1.60mm
Packaging Type Tube
Pitch – Mating Interface 2.54mm
Pitch – Termination Interface 2.54mm
Plating min – Mating 0.762µm
Plating min – Termination 1.905µm
Polarized to Mating Part Yes
Shrouded Fully
Stackable No
Surface Mount Compatible (SMC) No
Temperature Range – Operating -40°C to +105°C
Termination Interface: Style Through Hole
Electrical
(Please review the Product Specification for specific details.)
Current – Maximum per Contact 3.0A
Voltage – Maximum 250V
Agency Certification
CSA LR19980
UL E29179
Manufacturer:Molex
Datasheet:0705430111_PCB_HEADERS.pdf
