MOTOROLA 1N5274B: Zener 130V 0.5W 5%

MOTOROLA 1N5274B: Zener 130V 0.5W 5%

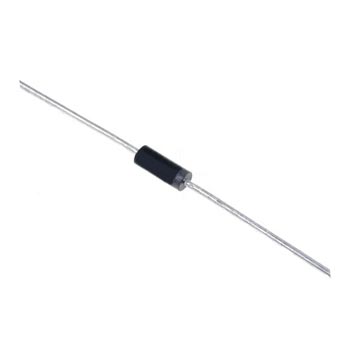

MOTOROLA 1N5274BRL Zener Diode 500mW 5% Through Hole DO-35
T/R MOS

ENQUIRY!
SKU: 1N5274 Categories: , , Tag: Brand:

Description

MOTOROLA 1N5274BRL T/R MOS  Zener Diode Zener 130V 0.5W 5%

The popular 1N5221B-1 thru 1N5281B-1 series of 0.5 watt Zener voltage regulators provides a selection from 2.4 to 200 volts in standard 5% or 10% tolerances as well as tighter tolerances identified by different suffix letters on the part number. These glass, axial-leaded DO-35 Zeners are also available in various up-screening levels by adding a prefix identifier as described in the “Part Nomenclature” section of this datasheet. Microsemi also offers numerous other Zener products to meet higher and lower power applications.

General Data Applicable to all series in this group.
500 Milliwatt
Hermetically Sealed
Glass Silicon Zener Diodes

Features

  • Complete Voltage Range – 1.8 to 200 Volts
  • DO-204AH Package – Smaller than Conventional DO-204AA Package
  • Double Slug Type Construction
  • Metallurgically Bonded Construction

    Mechanical Characteristics:
  • CASE: Double slug type, hermetically sealed glass
  • MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16″, from case for 10 seconds
  • FINISH: All external surfaces are corrosion resistant with readily solderable leads
  • POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
  • MOUNTING POSITION: Any
  • WAFER FAB LOCATION: Phoenix, Arizona


Manufacturer:Motorola
Datasheet:Others/1N5274B.pdf

Additional information

Weight 0.01 lbs
