Description

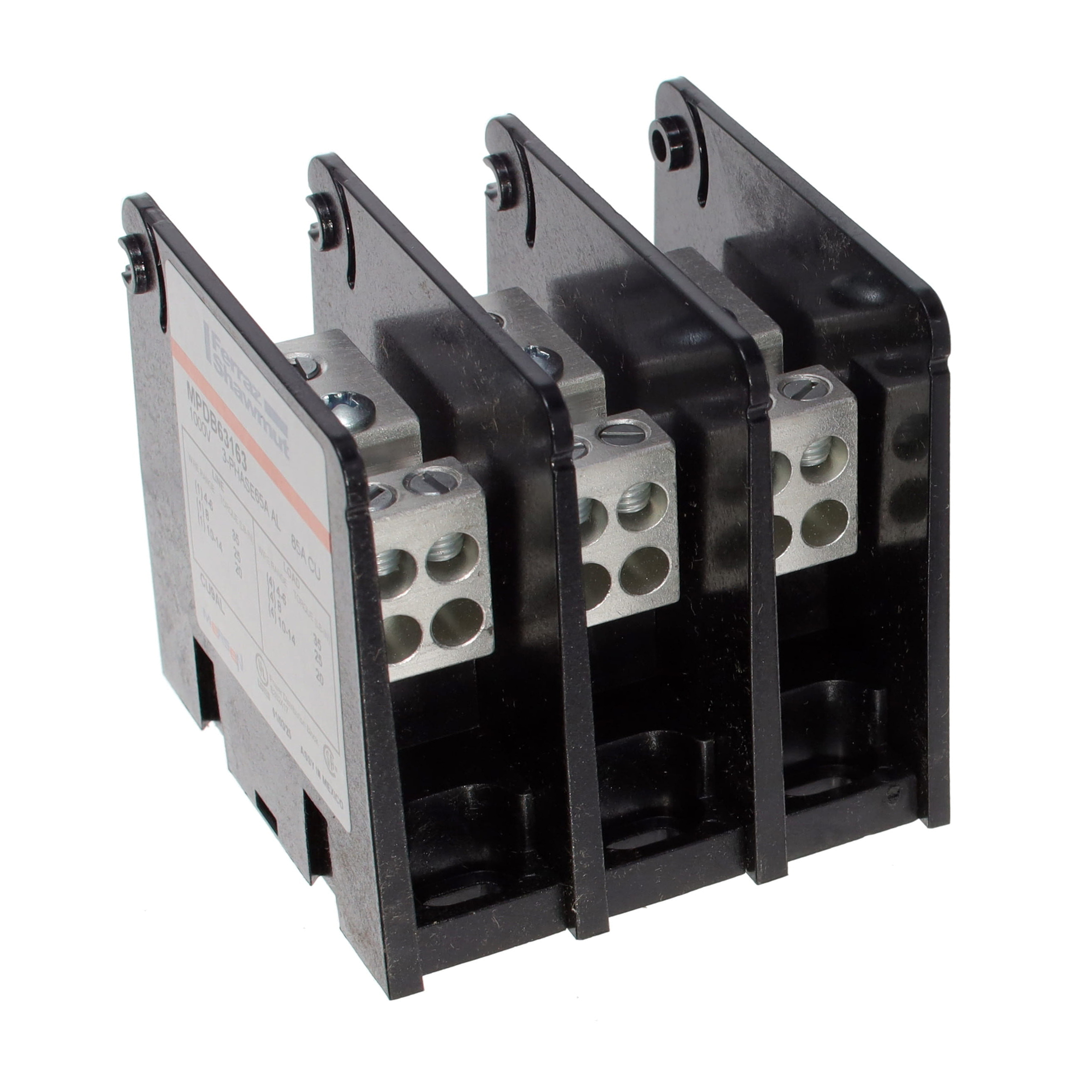

MPDB63163 Mersen Power Stud Terminal Block 1000V 85A 3-Pole 4-14 AWG AL; 6-14 AWG CU Stud, Stud on Load Side
Line Side Connections Per Pole: 1
Load Side Connections Per Pole: 4
Line Side Connection Type: Stud
Load Side Connection Type: 4
Line Side Wire/Stud Size: Stud
Load Side Wire/Stud Size: 4-14 AWG AL; 6-14 AWG CU
Number of Poles: 3
Type: Power Stud Terminal Block
Manufacturer: Mersen
Datasheet: Datasheet
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
