Description

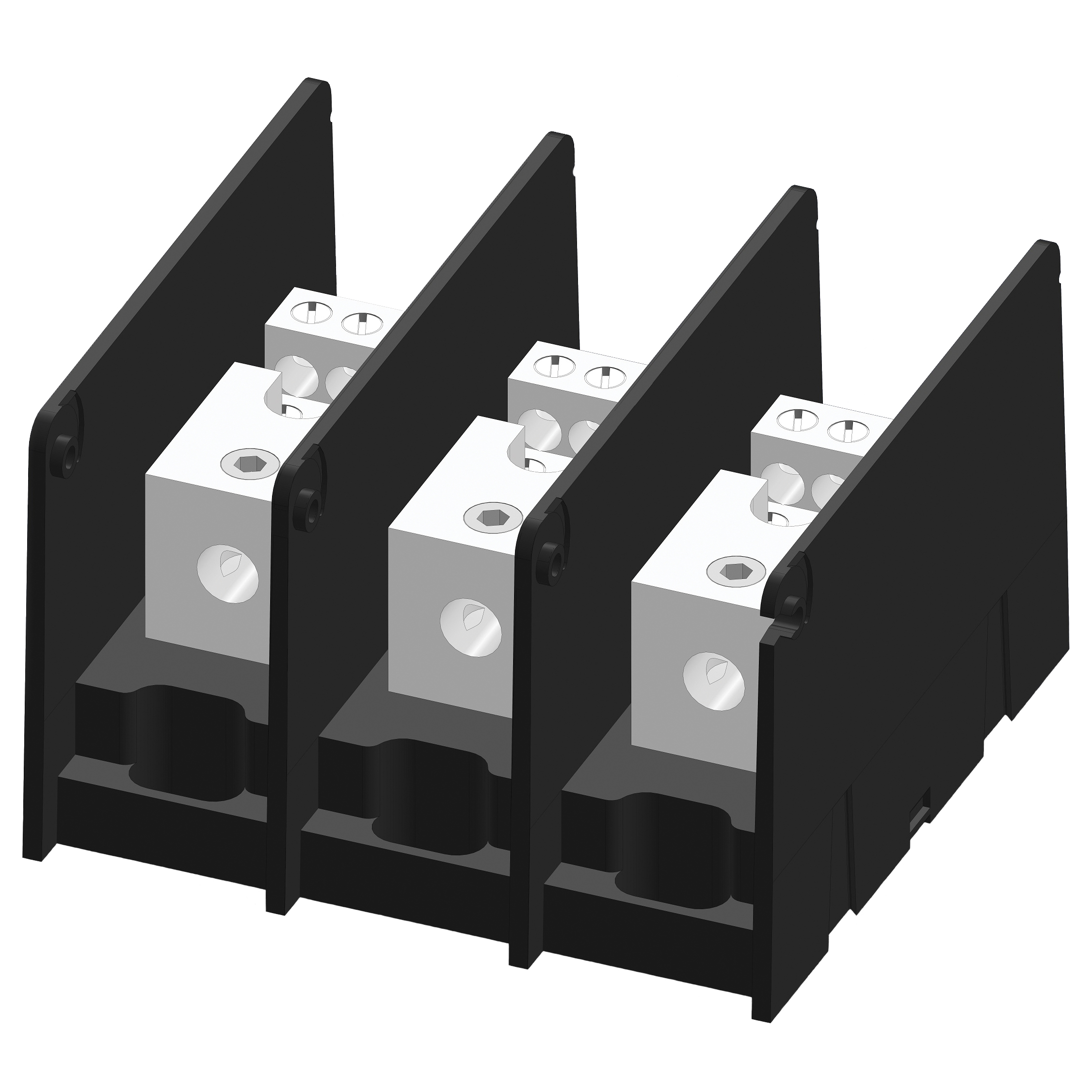

MPDB67013 Mersen Power Distribution Block 1000V 310A 3-Pole 350MCM (kcmil) – #6CU/AL Screw Connection, Screw Connection on Load Side
Line Side Connections Per Pole: 1
Load Side Connections Per Pole: 2
Line Side Connection Type: Screw Connection
Load Side Connection Type: 2
Line Side Wire/Stud Size: Screw Connection
Load Side Wire/Stud Size: 350MCM (kcmil) – #6CU/AL
Number of Poles: 3
Type: Power Distribution Block
Manufacturer: Mersen
Datasheet: Datasheet
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
