Description
Specification
10A 125 / 250VAC (UL/CUL)
10(4) 250V~T85 (FIMKO, ENEC)
Initial contact resistance : 20m ohm max.
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000 VAC for 1 minute
Electrical life : 6000(UL) 10,000 cycles(ENEC)
Temperature range : -20 to + 85 degrees in Celsius
Base : Nylon 66, 94V-2 min.
Actuator : Nylon 66, 94V-2 min.
Spring : Piano wire
Contact arm : Silver plated copper alloy
Terminals : Silver plated copper

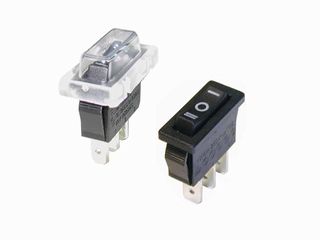

Manufacturer Part Number: MR3-232-C6-BBNW
Manufacturer: Canal
