Description

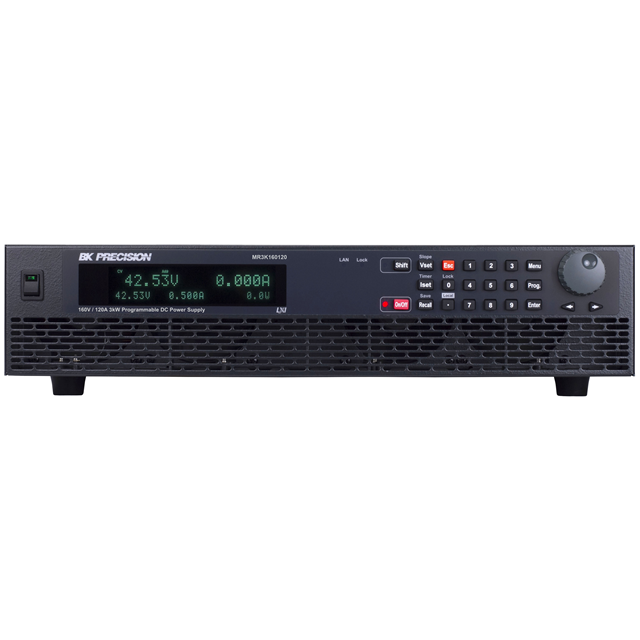

MR3K160120 B&K Precision Power Supply Bench (AC to DC) 200 ~ 240VAC 3000WVFD 0 ~ 160VDC 0 ~ 120A Memory, Programmable, GPIB, LAN, RS232, USB Interface. MR3K160120 is a MR series high voltage multi-range DC power supply delivers up to 5KW of clean output power in a compact 2U form factor. This power supply is suited for bench use and automated test system applications requiring a wide range of voltage/current. For benchtop applications, it offers an intuitive user interface for list mode programming and slew rate adjustments directly from the front panel. System integrators benefit from fast command response times, excellent regulation, and low noise characteristics. This series supports USB, GPIB, LXI compliant LAN, and analogue interfaces for remote control and programming. The provided LabVIEWTM, IVI-C, and IVI.NET drivers further simplify system development. The built-in SAS (solar array simulator) function enables users to generate PV (photovoltaic) I-V curves for testing solar inverters. Optional SAS software is available for simulating the I-V curve of different arrays under various weather and irradiance conditions.
160V / 120A, 5000W rating
Fast command response time (10ms)
Galvanically isolated analogue control and monitoring interface
OVP, OCP, OPP, OTP, foldback protection mode and key-lock function
Adjustable voltage and current slope (rise and fall time)
Internal list mode programming
LED mode to minimize inrush current and protect LED panels
Parallel operation for increased output power
Control up to 30 power supplies from one PC
Remote sense to compensate for voltage drop
Contents
High voltage multi-range DC power supply, Power cord, test report & certificate of calibration.
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Multi-Range
Input Voltage: 200 VAC to 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 160 VDC
Output Current-Channel 1: 0 A to 120 A
Output Power: 3 kW
Display Type: VFD
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 88 mm
Length: 532 mm
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: 0 C
Product Type: Bench Top Power Supplies
Series: MR
Subcategory: Power Supplies
Width: 420 mm
Number of Outputs: 1
Voltage Output: 0 ~ 160VDC
Current Output: 0 ~ 120A
Size / Dimension: 16.500″ L x 3.500″ W x 21.000″ H (419.10mm x 88.90mm x 533.40mm)
Manufacturer: B&K Precision
Datasheet: MR_Series_datasheet.pdf
