Description

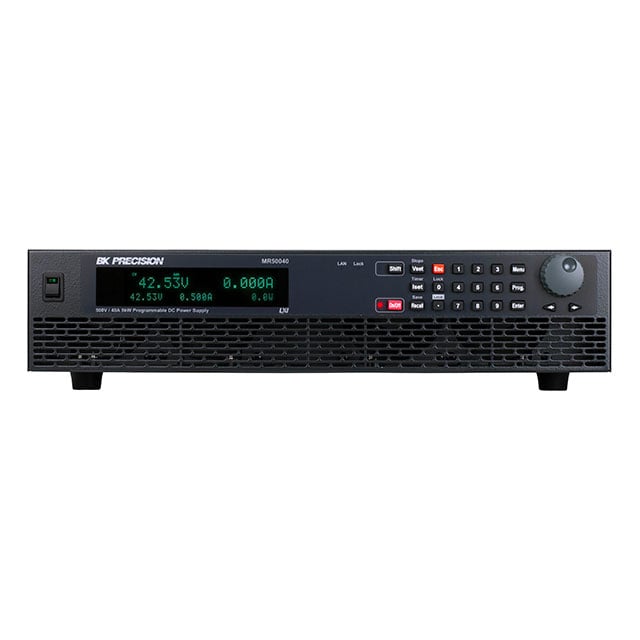

MR50040 B&K Precision Power Supply Bench (AC to DC) 200 ~ 240VAC 5000WVFD 0 ~ 500VDC 0 ~ 40A Memory, Programmable, GPIB, LAN, RS232, USB Interface. The MR50040 DC power supply provides up to 500VDC at up to 40A, producing 5 kW of clean output power in a compact 2U form factor. This series is suited for both bench and automated test system applications. For benchtop applications, this series offers an intuitive user interface for list mode programming and slew rate adjustments directly from the front panel. Operating software is provided for test sequence generation and data logging without the need to write source code. Integrators will benefit from fast command response times, excellent regulation, and low noise characteristics. In addition, this series supports USB, GPIB, LXI compliant LAN, and analog interfaces for remote control and programming. Up to 30 power supplies can be daisy-chained and controlled from one PC, or connect multiple power supplies in parallel for increased output power. The MR Series includes a built-in SAS (solar array simulator) function to generate I-V curves from the front panel. The optional SAS software allows users to simulate various weather conditions and consistently reproduce I-V curves while monitoring MPPT efficiency data.
Single output high voltage DC power supply provides 0~500VDC output from 0~40A, 5kW total
Multi-ranging operation, capable of replacing multiple fixed range power supplies
Compact 2U form factor
Standard USB (USBTMC-compliant), RS232, GPIB and LXI compliant LAN interfaces
Galvanically isolated analog control and monitoring interface
Protection features: OVP, OCP, OPP, OTP, foldback protection mode, and key-lock function
Adjustable voltage and current slope (rise and fall time)
List mode: 10 user-defined setups with up to 100 programmable steps each
Built-in SAS function for storage of up to 101 I-V curves with Voc, Isc, Vmp, Imp, parameters and 4096-point table
Remote Sense to compensate for voltage drop
Master/Slave mode operation provides up to 50 kW with 10 units connected in parallel
Control up to 30 power supplies from one PC
Soft panel software for remote control, test sequence generation, and data logging included
cTUVus certification mark demonstrates compliance with CSA and UL safety standards
Hardwired AC input requires 200~240VAC, 47Hz~63Hz input, 6000VA
Specs
Product Category: Power Supplies – Bench Top
Product: DC Power Supplies
Type: Multi-Range
Input Voltage: 200 VAC to 240 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VDC to 500 VDC
Output Current-Channel 1: 0 A to 40 A
Output Power: 5 kW
Display Type: VFD
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 88 mm
Length: 532 mm
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: 0 C
Product Type: Bench Top Power Supplies
Series: MR
Subcategory: Power Supplies
Width: 420 mm
Unit Weight: 46.200 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 500VDC
Current Output: 0 ~ 40A
Size / Dimension: 16.500″ L x 3.500″ W x 21.000″ H (419.10mm x 88.90mm x 533.40mm)
Manufacturer: B&K Precision
Datasheet: MR_Series_datasheet.pdf
