Description

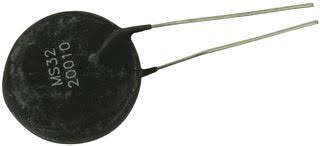

MS32 0R560 Ametherm Thermistor 0.5Ohm 60A Radial -25% to +25%, Radial Leaded, MegaSurge MS32 Series
The MS32 0R560 is a 2-pin NTC Thermistor provides a simple one-component alternative to using wire wound resistors with timers and relays. This MegaSurge MS32 series inrush current limiter thermistor has the ability to withstand high steady-state currents to 36A and up to 300J of input energy. In addition, they increase safety by eliminating the fire hazard associated with failed relays. Ideal for inrush current protection.
Electrical Specifications
Resistance @ 25°C 10 Ω ± 20 %
Max Steady State Current 15 Amps
Max Recommended Energy 250 Joules
Max Capacitance @ 120 VAC 19,250 µF
Max Capacitance @ 240 VAC 4,341 µF
Max Capacitance @ 440 VAC 1,003 µF
Max Capacitance @ 680 VAC 500 µF
Resistance @ 100% Max Current 0.00 Ω
Resistance @ 50% Max Current 0.22 Ω
Body Temperature @ Max Current 224 °C
Dissipation Constant 63.7 mw/°C
Thermal Time Constant 194 s
Material Type (For Beta and Curve) H
Ametherm thermistor Inrush Current Limiters have become the industry standard to reduce inrush current across the electronics industry. W
Categories Circuit Protection
Inrush Current Limiters (ICL)
Manufacturer Ametherm
Part Status Active
R @ 25C 0.5 Ohms
Tolerance 25%
Current – Steady State Max 60A
R @ Current 0.004 Ohms
