Description

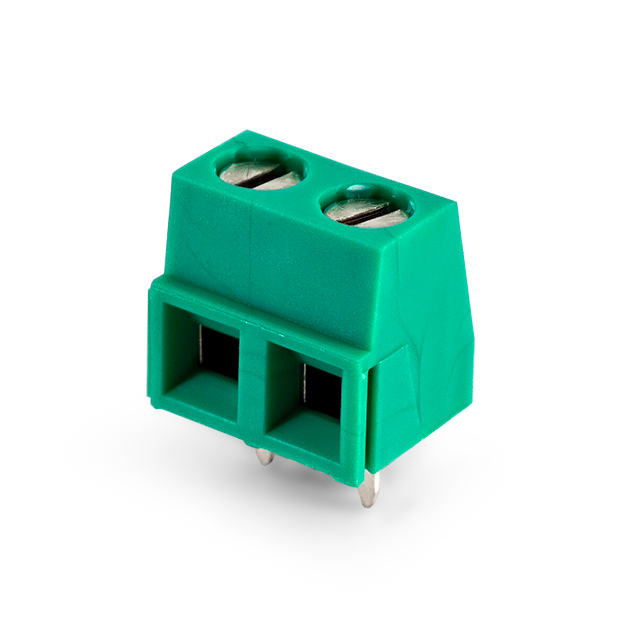

MSB02001 Sauro Slr Connector Conn Terminal Block
Specifications
EU RoHS Compliant with Exemption
TypeTerminal Block
Number of Contacts 2
Number of Rows 1
Terminal Pitch (mm)5
Number of Circuits 2
Termination Method Solder
Body Orientation Straight
Maximum Current Rating (A)17.5
Maximum Voltage Rating 300V
Minimum Operating Temperature (C)-40
Maximum Operating Temperature (C)110
Packaging Box
Product Length (mm)10
Product Depth (mm)8.2
Product Height (mm)10
Housing Color Green
Mounting Through Hole
Need to ensure strong connections between circuits? This MSB02001 PCB terminal block from Sauro will do just that! This is a 1-row connector. It has a maximum voltage rating of 300 V. It has a straight body orientation. Its pitch is 5 mm. MSB02001 is housed in polyamide 6/6. This device has a maximum current rating of 17.5 A. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 110 C. This product is 10 mm long, 10 mm tall and 8.2 mm deep. Its wire is 15-30 AWG.
Manufacturer Part Number: MSB02001
Manufacturer: Electronic Components
