Description

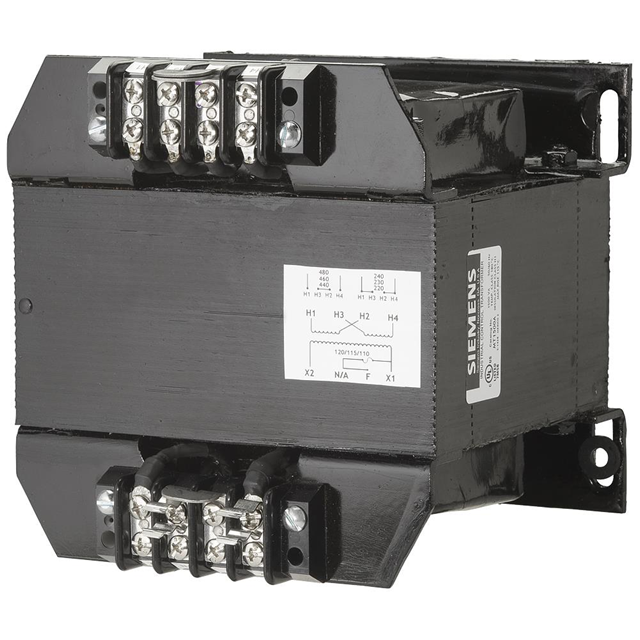

MTG1500A Siemens Control Power Transformer, Class MTG, 240 x 480 VAC, 230 x 460 VAC, 220 x 440 VAC Primary, 120/115/110 VAC Secondary, 1500 VA Power, 50/60 Hz Frequency, 1 ph, Power Factor: 20 %, Screw Terminal Connection, Surface Mounting, Class 180 deg C Insulation, Open Enclosure, -4 to 104 deg F, 6.33 in H x 7 in W x 7.42 in D Dimensions, Chassis Screw Mount Box
Specifications
Country of Origin: United States – Subject to change
Type: Control Power Transformer
Volts, Primary: 240/480V AC, 230/460V AC, 220/440V AC
Volts, Secondary: 120/115/110V AC
Power Rating: 1500 VA
Frequency: 50/60 Hz
Construction Style: Open, Epoxy Encapsulated
Mounting: Surface
Terminals: Touchsafe Screw
Insulation Class Rating: Class 180 deg C
Temperature Rise: 120 deg C
Dimensions: 6.33 in. H x 7.00 in. W x 7.42 in. D
Weight: 38 lb.
Primary Voltage: 220V, 230V, 240V, 440V, 460V, 480V
Secondary Voltage – (Full Load): 120V, 115V, 110V
Max Power: 1500VA
Center Tap: No
Termination Style: Terminal Block
Size : 188.47mm L x 177.80mm W
MTG1500A Item Features
Meets IP-20 specifications per IEC 529 for finger-safe protection when used with Siemens touch safe snap-on terminal cover kits
Meets IP-00 specifications when covers are not used
Insulation requirements is twice that of UL 5085
Integrally molded terminals and barriers between terminals make breakage virtually impossible during wiring
The MTG transformer construction is the same as our high quality class MT transformers
MTG1500A Standards
UL Listed|cUL Listed|ANSI Specified|CE Certified|CSA Certified|IEC/EN 61 558
