Description

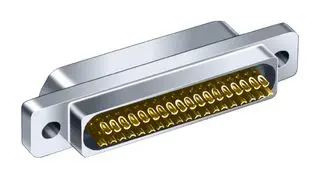

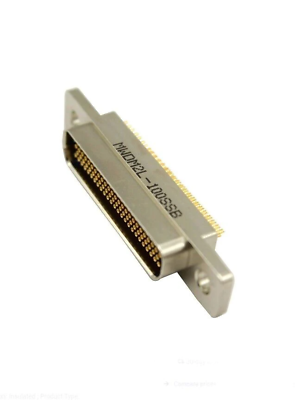

MWDM2L-69TSB Glenair D-Sub Micro-D Connectors MICR D SLDRCUP CON 9CNT SZ #24 PIN
Specifications
EU RoHS Compliant
Type Micro D-Subminiature
Gender RCP
Number of Contacts 69
Number of Terminals 69
Number of Ports 1
Number of Rows 3
Termination Method Solder Cup
Body Orientation Straight
Contact Gender SKT
Maximum Current Rating (A) 3
Insulation Resistance (MOhm) 5000
Maximum Contact Resistance (mOhm) 8
Minimum Operating Temperature (C) -55
Maximum Operating Temperature (C) 150
Shell Material Aluminum
Shell Plating Nickel
Product Length (mm) 44.07
Product Depth (mm) 15.98
Product Height (mm) 8.92
Mounting Panel Mount
Contact Material Copper Alloy
Contact Plating Gold Over Nickel
Manufacturer Part Number: MWDM2L-69TSB
Manufacturer: Electronic Components
