Description

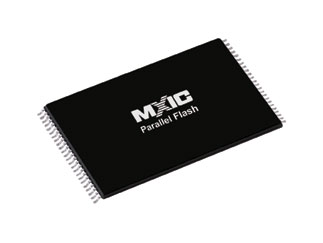

MX29LV160DTTI-70G Macronix NOR Flash 16 M-Bit 3 V Supply Top Boot Block Parallel Flash memory 48-Pin TSOP-I RoHS
Technical Attributes
Memory Density:16Mb
Memory Organization:2 M x 8 / 1 M x 16
Supply Voltage-Nom:2.7V to 3.6V
Access Time-Max:70ns
Package Style: TSOP-48
Mounting Method: Surface Mount
Features & Applications
The MX29LV160DTTI-70G is a 16 M-Bit 3 V Supply Top Boot Block Parallel Flash memory. It’s Operating Temerature Ranges from -40C to +85C.
Features:
Byte/Word mode switchable
2,097,152 x8 / 1,048,576 x16
Sector Structure
6 K-Byte x 1, 8 K-Byte x 2, 32 K-Byte x 1, 64 K-Byte x 31
Provides sector protect function to prevent program or erase operation in the protected sector
Provides chip unprotect function to allow code changing
Provides temporary sector unprotect function for code changing in previously protected sector
Power Supply Operation
Vcc 2.7 to 3.6 volt for read, erase, and program operations
Latch-up protected to 100 mA from -1 V to 1.5 x Vcc
Low Vcc write inhibit : Vcc <=Vlko
Compatible with JEDEC standard
Pinout and software compatible to single power supply Flash
Functional compatible with MX29LV160C device
Manufacturer: Electronic Components
MFG Part #: MX29LV160DTTI-70G
