Description

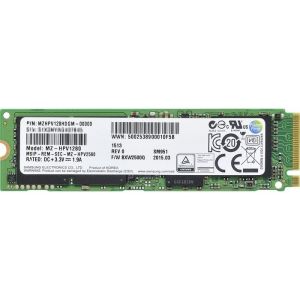

MZVPV128HDGM-00000 Samsung NVMe M.2 80mm PCI-Express 3.0 x4 Internal Solid State Drive (SSD)128GB M.2-2280
M.2 Interface: PCIe 3.0 x4 lanes, up to 32Gb/s
256MB LPDDR2 DRAM Buffer Memory
Supports Standard NVMe driver, APM and L1.2 Power Saving Mode, End-to-End Data Protection, Support TRIM Command, RoHS Compliant, Halogen-Free Compliance
Sequential Read: 2000MB/s, Sequential Write: 650 MB/s, Random Read (QD=4): 300K IOPS, Random Write (QD=4): 83K IOPS
Works with most motherboards and notebooks with a compatible M.2 PCIe interface slot. Includes Z97/X99/Z120 motherboards. Not compatible with the MacBook, MacBook Air, MacBook Pro, or Mac Pro (see description for details)
FEATURES PCIe Gen3 8Gb/s Interface, up to 4 Lanes Compliant with PCI Express Base Specification Rev. 3.0 Compliant with NVMe Express specification. Rev.1.1a Power Saving Modes: – Supporting APST – Supporting L1.2 Mode Support Admin & NVM Command Set End-to-End Data Protection RoHS Compliant Support up to 1 Namespaces Support up to 8 I/O Queues Support up to 16K Queue entries for each I/O Queue Drive Configuration Capacity 256 GB From Factor M.2 Interface PCIe Gen3 8Gb/s x4 Electrical Specifications Supply Voltage +3.3V ± 5% Voltage Ripple/Noise (max.) 100mV p-p Active (typical) 6.5W Idle (typical) 50mW L1.2 (Typ) 2mW Performance Specifications Data Transfer Rate (128KB) Sequential Read (256/512GB) Up to 2150 MB/s Sequential Write (256GB) Up to 1260 MB/s Data I/O Speed (4KB) Random Read (128/256/512GB) Up to 300K IOPS Up to 300K IOPS
Manufacturer Part Number: MZVPV128HDGM-00000
Manufacturer: Samsung
