Description

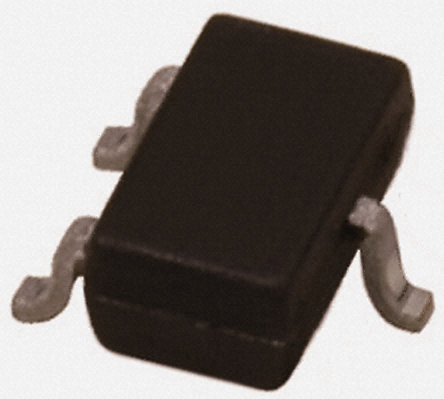

NEC 2SA1815 FMRMMIXIF Amp High-Frequency General-Purpose Amp Applications
Specifications
Transistor Type PNP
Maximum DC Collector Current -50 mA
Maximum Collector Emitter Voltage -12 V
Package Type CP
Mounting Type Surface Mount
Maximum Power Dissipation 0.25 W
Minimum DC Current Gain 90
Configuration Single
Maximum Collector Base Voltage -15 V
Maximum Emitter Base Voltage -3 V
Maximum Operating Frequency 750 MHz
Pin Count 3
Number of Elements per Chip 1
Maximum Collector Emitter Saturation Voltage -0.3 V
Height 1.1mm
Length 2.9mm
Dimensions 2.9 x 1.5 x 1.1mm
Maximum Operating Temperature +150 °C
Width 1.5mm
Transistor Type PNP
Voltage – Collector Emitter Breakdown (Max) 12V
Frequency – Transition 750MHz
Noise Figure (dB Typ @ f) –
Gain 25dB
Power – Max 250mW
DC Current Gain (hFE) (Min) @ Ic, Vce 90 @ 5mA, 10V
Current – Collector (Ic) (Max) 50mA
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Manufacturer:Electronic Components
Datasheet:2SA1815.pdf
