Description

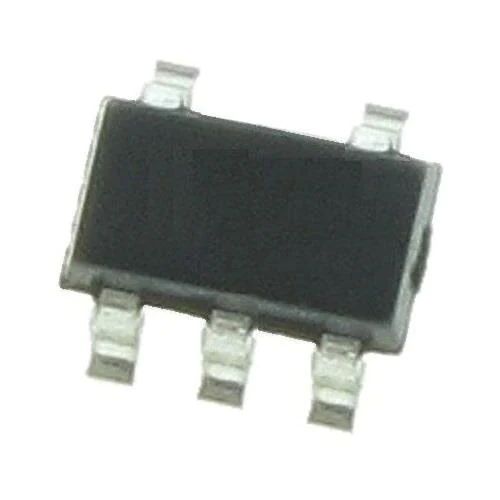

NJM2741F3-TE1 NJR NJR/JRC General Purpose Amplifier 1 Circuit Rail-to-Rail 2.5V to 14V 1mV SC-88A RoHS
Specifications
Manufacturer: NJR
Product Category: Operational Amplifiers – Op Amps
Mounting Style: SMD/SMT
Package / Case: SOT-23-5
Number of Channels: 1 Channel
Supply Voltage – Max: 14 V
GBP – Gain Bandwidth Product: 10 MHz
SR – Slew Rate: 3.5 V/us
Vos – Input Offset Voltage: 6 mV
Supply Voltage – Min: 2.5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Ib – Input Bias Current: 350 nA
Operating Supply Current: 3.3 mA
Shutdown: No Shutdown
CMRR – Common Mode Rejection Ratio: 60 dB
en – Input Voltage Noise Density: 10 nV/sqrt Hz
Series: NJM2741
Packaging: Reel
Packaging: Cut Tape
Brand: NJR
Height: 0.9 mm
Length: 2 mm
Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V
Pd – Power Dissipation: 280 mW
Product Type: Op Amps – Operational Amplifiers
Quantity:3000
Subcategory: Amplifier ICs
Supply Type: Single
Technology: Bipolar
Voltage Gain dB: 85 dB
Width: 1.25 mm
Unit Weight: 0.001058 oz
Manufacturer: Renata
MFG Part #: NJM2741F3(TE1)
