Description
NJM2902V-TE1 NJR New Japan Radio Co Ltd IC Operational Amplifiers – Op Amps Quad Single Supply 3-32V 2mA 500kHz 0.5 V/us TSSOP-14 RoHS
Specifications
Manufacturer: NJR
Product Category: Operational Amplifiers – Op Amps
RoHS
Mounting Style: SMD/SMT

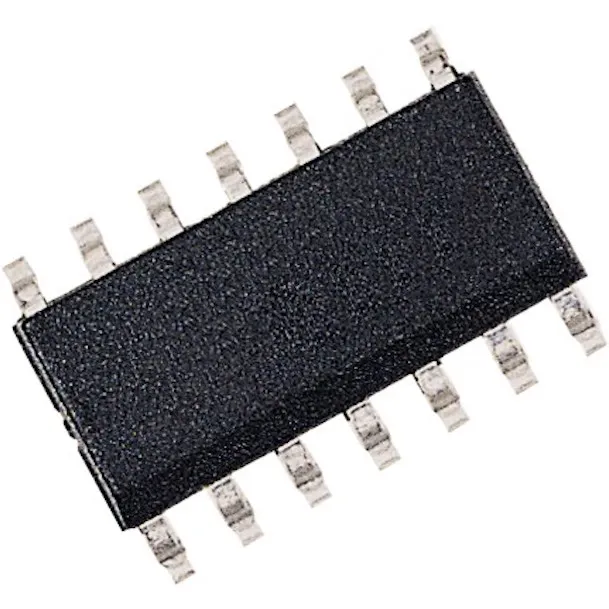

Package / Case: SSOP-14
Number of Channels: 4 Channel
Supply Voltage – Max: 32 V
GBP – Gain Bandwidth Product: 500 kHz
SR – Slew Rate: 0.5 V/us
Vos – Input Offset Voltage: 10 mV
Supply Voltage – Min: 3 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Ib – Input Bias Current: 500 nA
Operating Supply Current: 2 mA
Shutdown: No Shutdown
CMRR – Common Mode Rejection Ratio: 85 dB
Series: NJM2902
Packaging: Cut Tape
Packaging: Reel
Amplifier Type: General Purpose Amplifier
Height: 1.15 mm
Length: 5 mm
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 4.4 mm
Brand: NJR
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Pd – Power Dissipation: 300 mW
Product Type: Op Amps – Operational Amplifiers
Factory Pack Quantity: 2000
Subcategory: Amplifier ICs
Tradename: NJM2902
Voltage Gain dB: 100 dB
Unit Weight: 0.004296 oz
Manufacturer: Electronic Components
MFG Part #: NJM2902V-TE1
