Description

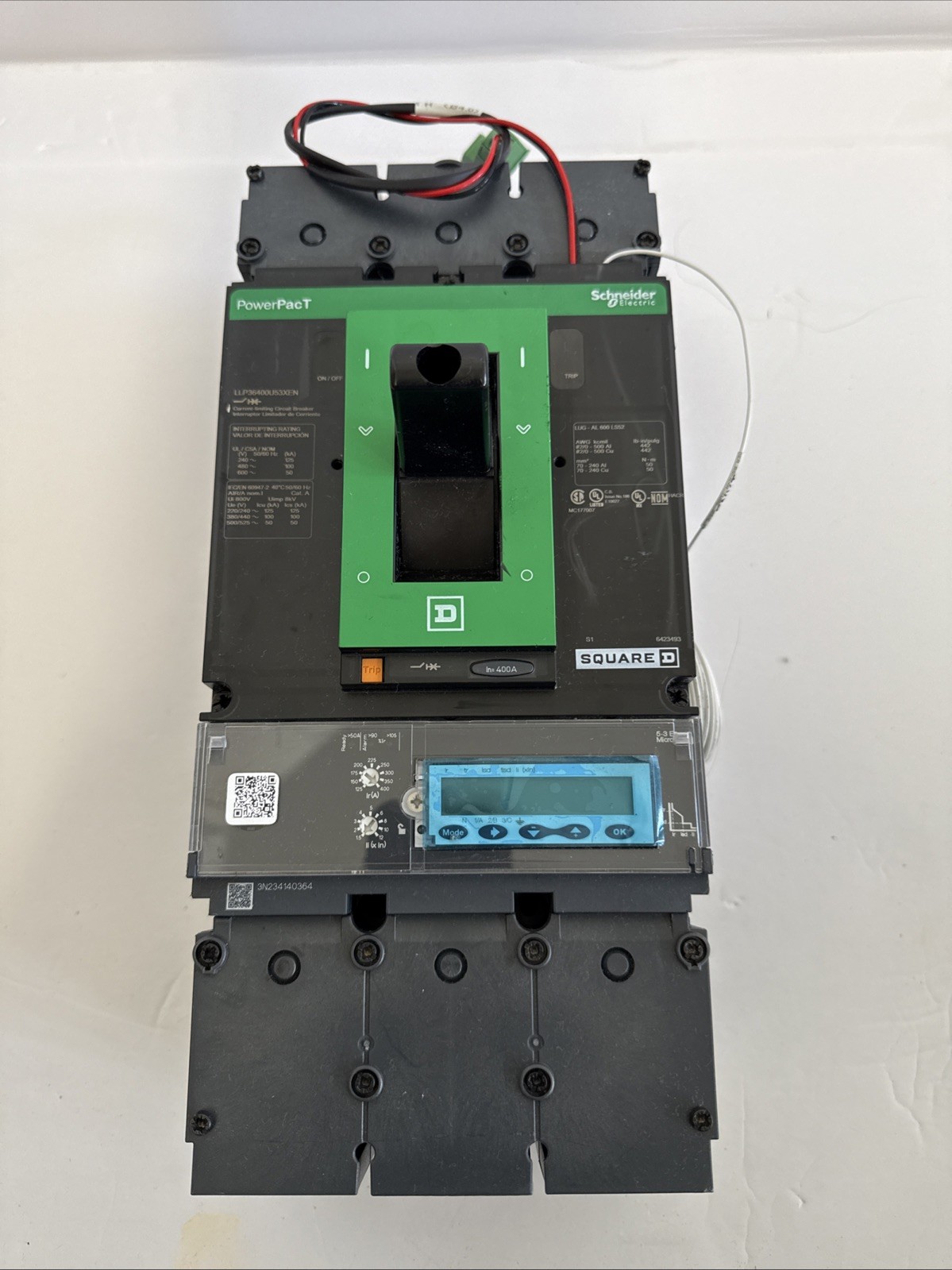

NLLF36400U53XTW SquareD Schneider Electric Molded Solid State Circuit Breaker PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC Chassis Mount Toggle 3-Poles CCC, CE
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Energy with a 5.3E trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Brand Schneider Electric
Range PowerPact
Product Type Molded Case Circuit Breaker
Series NLL
Number of Poles 3
Current Rating 400 A
Breaking Capacity 25kA
Mount Type DIN Rail
Rated AC Voltage 600 V ac
Height 340mm
Standards/Approvals W-C-375B/GEN, UL 489, NMX J-266, NEMA AB1, CSA C22.2 No 5, CEI 62262, CEI 60947-2, CEI 60664-1, CEI 60529
Depth 110mm
Width 140 mm
Tripping Mechanism Electronic
Tripping Characteristics MicroLogic 5.3 E
Breaker Type: Solid State
Mounting Type: Chassis Mount
Number of Poles: 3
Illumination: 3
Actuator Type: Toggle
VoltageRating: 525V AC
Current Rating: 400A (Amps)
Package: Box
