Description

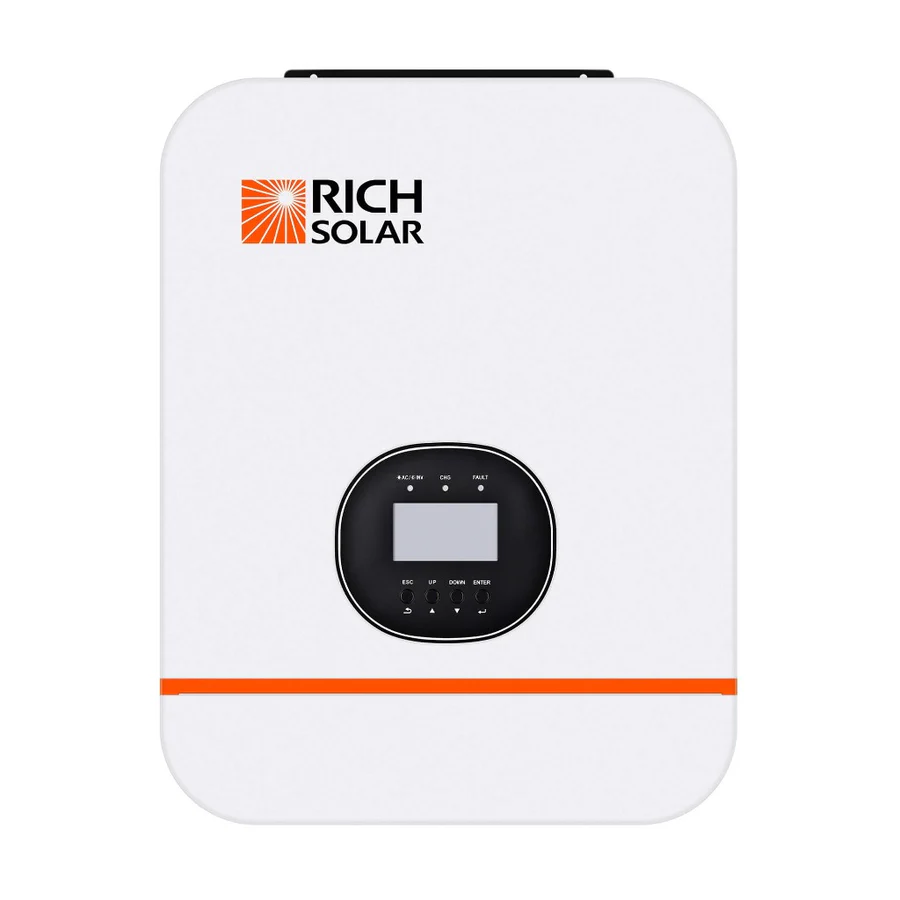

NOVA 3K | 3000 Watt (3kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 3000W 48V Hybrid Inverter for RVs, Cabins, Tiny Homes, Off-Grid | Top Rated
Features
Pure Sine Wave Inverter
LED Display
Wi-Fi/GPRS Remote Monitoring (optional)
CAN/RS485 for BMS Communication
Integrated MPPT Charge Controller
Configurable Grid or Solar Input Priority
48V Battery System
Compatible with Mains Voltage or Generator Power
High-Frequency Inverter with Small Size and Lightweight
Overload, Short Circuit and Deep Discharge Protection
Parallel Operation Up to 6 Units Off-grid Capabilities
Specifications
Rated Power: 3000VA/3000W
Parallel Capability: Yes
AC Voltage Regulation (Battery Mode): 120 VAC
Efficiency (Peak): 90%
Waveform: Pure Sine Wave
Transfer Time: 10ms Typical, 20ms Max @ Single <30ms @ Parallel
Weight: 25.4 Lb
Dimensions: 13.8″L x 5.1″W x 17.9″H
Solar Charger Input
PV Array MPPT Voltage Range: 60VDC ~ 115VDC
Maximum PV Array Open Circuit Voltage: 145VDC
Waveform: Pure Sine Wave
Max Solar Charge Current: 80A
Maximum Efficiency: 98%
Standby Power Consumption: <50W
AC Outlet Charger
Charge Current: Default: 30A, Max 40A
AC Input Voltage: 120VAC
Selectable Voltage Range: 95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances)
Frequency Range: 50Hz/60Hz (Auto Sensing)
Operating Environment
Humidity: 5% to 95% Relative (Non-Condensing)
Operating Temperature: 0°C – 55°C
Storage Temperature: -15°C – 60°C
