Description

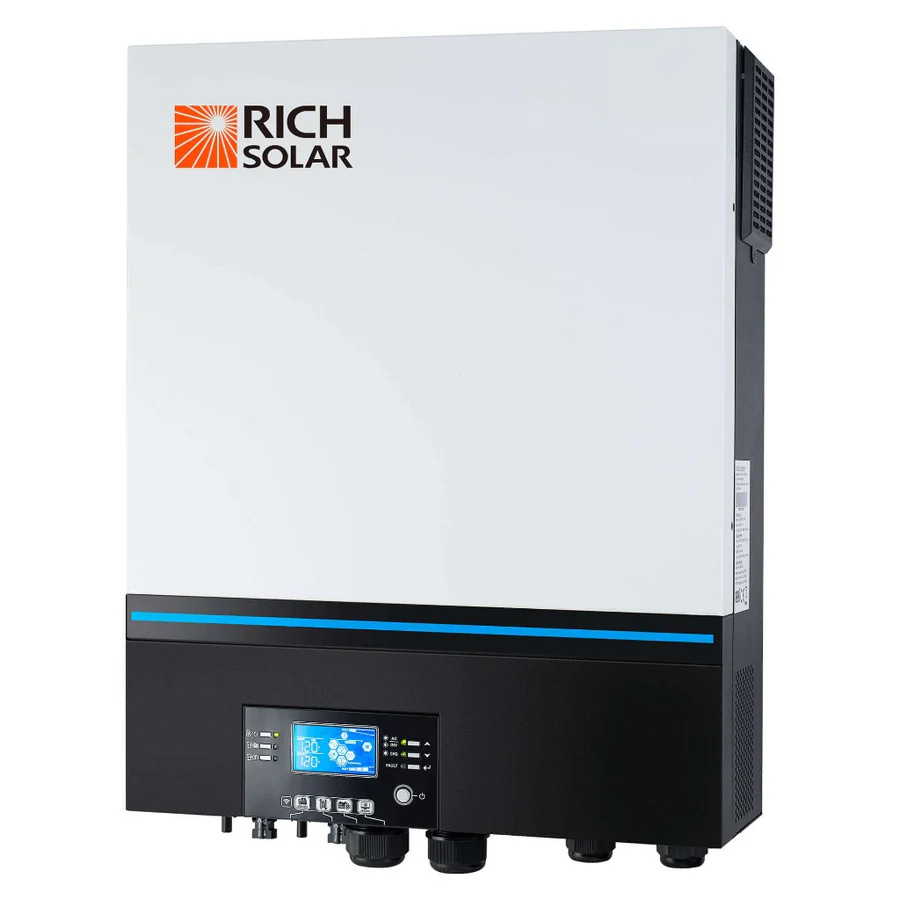

NOVA 6548 | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 6500W 48V Hybrid Inverter for Campers, Cabins, Tiny Homes, ADUs, RVs, Off-Grid | UL Certified
Features
Pure Sine Wave Inverter
Configurable color with the built-in RGB LED bar
Built-in Wi-Fi for mobile monitoring (APP is required)
Supports USB On-the-Go function
Built-in anti-dusk kit
Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
Configurable input voltage ranges for home appliances and personal computers via LCD control panel
Configurable AC/PV output usage timer and prioritization
Configurable AC/Solar charger priority via LCD control panel
Configurable battery charging current based on applications via LCD control panel
Compatible with utility mains or generator power
Auto restart while AC is recovering
Overload/over temperature/short circuit protection
Parallel operation with 6 units
Smart battery charger design for optimized battery performance
Cold start function
Specifications
Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
Parallel Capability: Yes, 6 units
Input
Voltage: 120 VAC
Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto Sensing)
Output
AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
Surge Power: 2* rated power for 5 seconds
Efficiency (Peak): 91%
Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
Optional DC Voltage: 12 VDC ± 7%, 100W
Battery
Battery Voltage: 48 VDC
Float Charging Voltage: 54 VDC
Overcharge Protection: 66 VDC
Solar Charger & AC Charger
Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A
Physical
Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
Net Weight: 40.6 lb
Communication Interface: USB/RS232/RS485/WiFi/Dry-contact
Operating Environment
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -14°F to 104°F
Storage Temperature: 5°F to 140°F
Standard
Compliance Safety: UL 1741 by TUV
