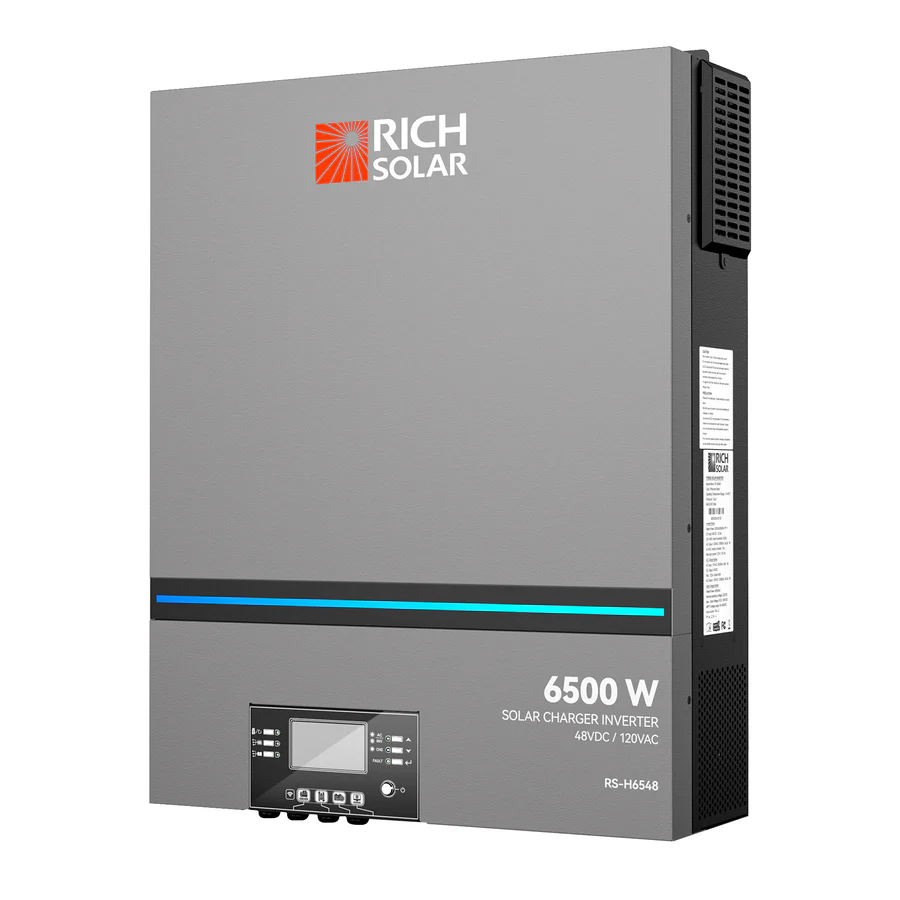

NOVA 6K | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter | 550V PV Input | Powerful 6500W 48V Hybrid Inverter for RVs, Cabins, Tiny Homes, ADUs, Residential, Commercial, Off-Grid | UL Certified
Take control of your solar power system with Rich Solar Inverters, designed for maximum energy efficiency, reliability, and long-term performance. Whether you’re building a new solar installation or upgrading an existing setup, Rich Solar delivers cutting-edge inverter technology trusted by homeowners, RV enthusiasts, and off-grid users worldwide.
Each Rich Solar inverter is engineered to seamlessly convert DC power from solar panels into clean, usable AC power for your home, business, or mobile application. With durable construction, smart monitoring features, and advanced safety systems, these inverters provide stable, efficient power output even in demanding environments.
Features
Pure Sine Wave Inverter
Configurable color with the built-in RGB LED bar
Built-in Wi-Fi for mobile monitoring (APP required)
Supports USB on-the-go function
Built-in anti-dusk kit
Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
Configurable input voltage ranges for home appliances and personal computers via LCD control panel
Configurable AC / PV output usage timer and prioritization
Configurable AC / Solar charger priority via LCD control panel
Configurable battery charging current based on applications via LCD control panel
Compatible with utility mains or generator power
Auto restart while AC is recovering
Overload / over temperature / short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Specifications
Model: RS-H6548V5
Rated Output Power: 6500W
Parallel Capability: Yes, 6 units
Input
Input Voltage: 120 VAC
Efficiency: >95% (Rated R load, battery fully charged)
Frequency Range: 50Hz / 60Hz (Auto detection)
Output
Rated Output Power: 6500W
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 120 VAC±5%
Peak Efficiency: 91%
Surge Capacity: 2* rated power for 5 seconds
Nominal DC Input Voltage: 48 VDC
Cold Start Voltage: 46.0 VDC
Battery
Battery Voltage: 48 VDC
Float Charging Voltage: 54 VDC
Overcharge Protection: 66 VDC
Operating Environment
Operating Temperature Range: 14°F to 104°F
Storage temperature: 5°F~ 140°F
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Physical
Dimensions: 5.8 x 17.0 x 22.66 (24.43) in (with extension box)
Net Weight: 18.4kg / 41lb
