Description

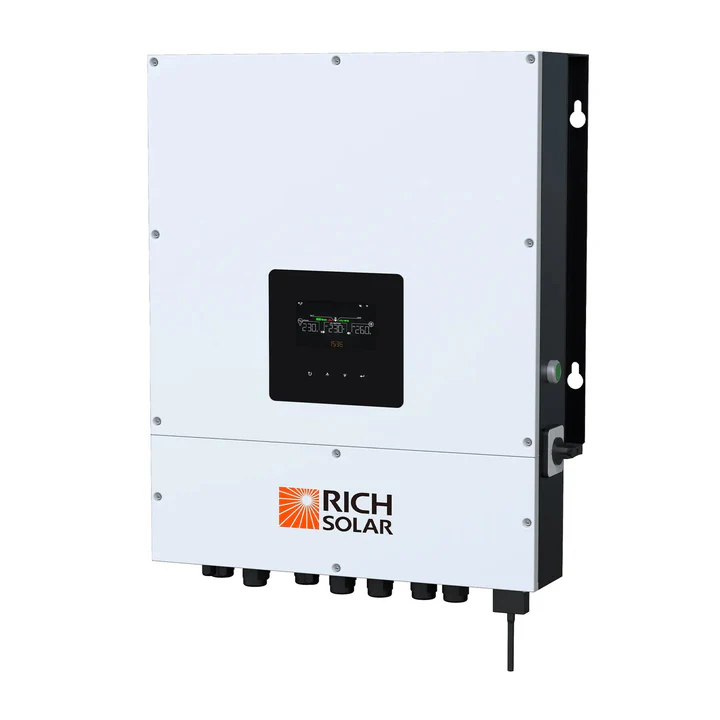

NOVA 8K | 7500 Watt (7.5kW) 48V Split Phase Hybrid Inverter | 7500W PV Input, 6000W Continuous Output 120/240V | Premium 7500W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified
Features
IP65 waterproof and dustproof making the inverter suitable for various working conditions.
Configurable color with the built-in RGB LED bar.
Built-in Wi-Fi for mobile monitoring (APP is required).
Built-in alternative port for generator and emergent load.
Optional external CT sensor to guarantee 100% self-consumption.
Programmable supply priority for PV, Battery or Grid.
Built-in communication port for BMS (RS485).
User-adjustable charging current and voltage.
Parallel operation up to 6 units.
Specifications
General
Maximum PV Input Power: 7500W
Rated Output Power: 6000VA/6000W
Parallel Capability: Yes, 6 units
Input
Maximum DC Voltage: 600VDC
Start-up Voltage/Initial Feeding Voltage: 120VDC/160VDC
MPPT Voltage Range: 120VDC-550VDC
Frequency Range: 50Hz/60Hz (Auto detection)
Output
Output Voltage Waveform: Pure Sine Wave
Nominal Output Voltage: 120VAC (P-N)/208VAC (P-P)/240VAC (P-P)
Output Voltage Range: 105.5–132VAC per phase
Nominal Output Current: 25A per phase
Battery
Battery Voltage: 40–62VDC
Maximum Charging Current: 120A
Efficient (DC to AC): 91%
Operating Environment
Operating Temperature Range: -13°F to 140°F (>113°F derating)
Physical
Dimension: 8.5×20.3×27.6in/215.5x515x700mm
Net Weight: 90.4lb/41kg
