Description

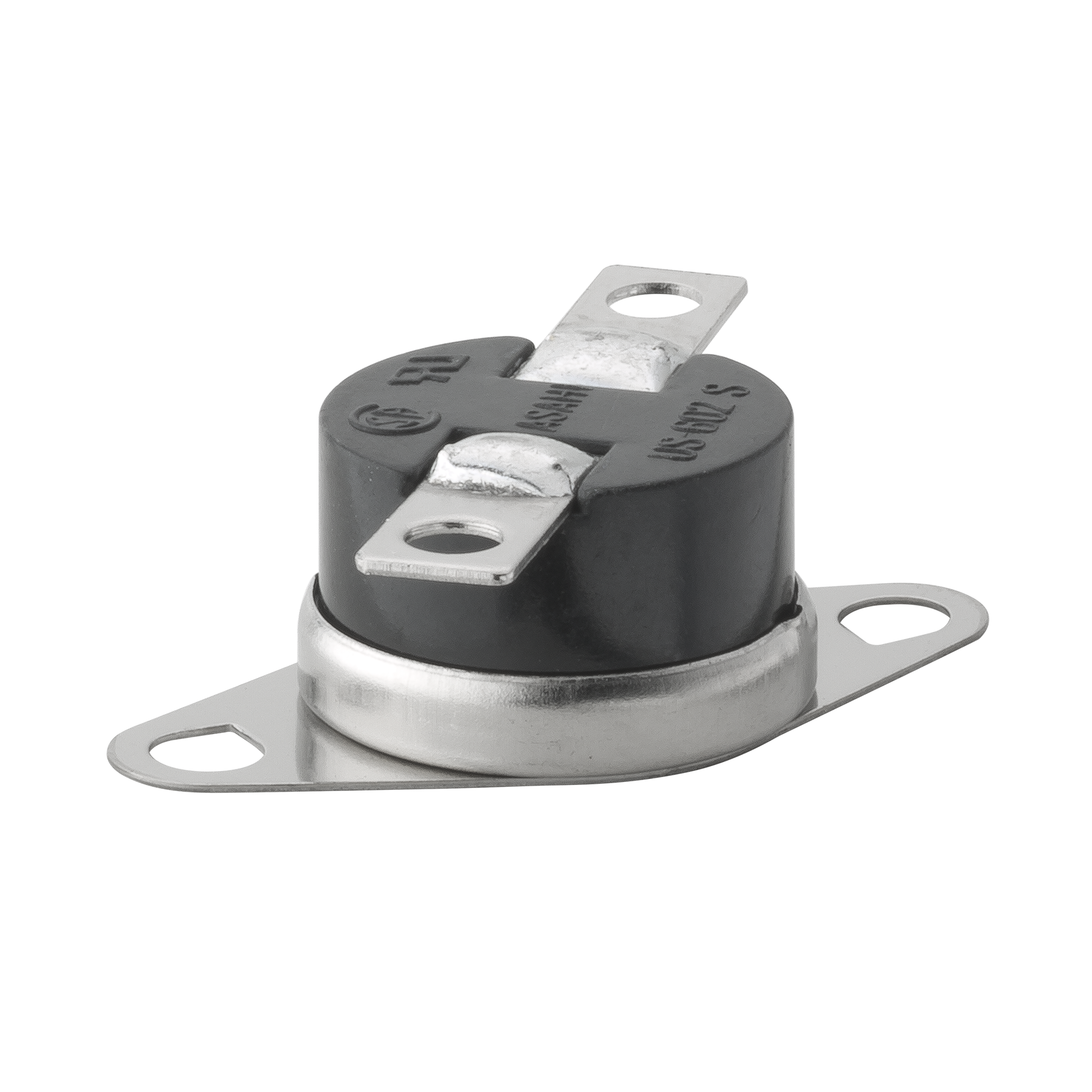

OA-110 Selco 1/2″ Disc Thermostat, US-602SXSHAS45110F30, Opens on rise 110F +- 5F, Resets at 80F +-11F, Solder terminals, Surface mount bracket, 45deg orientation
Product Specifications
Body Style: 1/2 in. Disc
Close Temperature: 80 F (26.7 C)
Current Rating: 15 A
Dielectric Rating: 1500 VAC per 1 Minute
Dimensions: 1.18″ L x 0.570″ W x 0.395″ H
Function: Thermostat
Housing Material: 177
Insulation Resistance: 100 Megohms
Maximum Operating Temperature: 0C
Measurement Range: 150 degC
Mounting Style: Surface Mount
Mounting Type: Surface Mount
Open Temperature: 110 F (43.3 C)
Output: NC
Priority: Thermostat; Disc; 125/250 VAC; 15/10 A
Sensing Mode: Open on Rise
Series: OA Series
Standards: UL & cUL Listed, CSA Certified, VDE Approved
Supply Voltage: 250 VAC
Technology: Thermal Conductive
Termination: Solder Tabs
Thermostat Type: Disc
Type: Thermostat
Manufacturer: Electronic Components
MFG Part #: OA-110
