Description

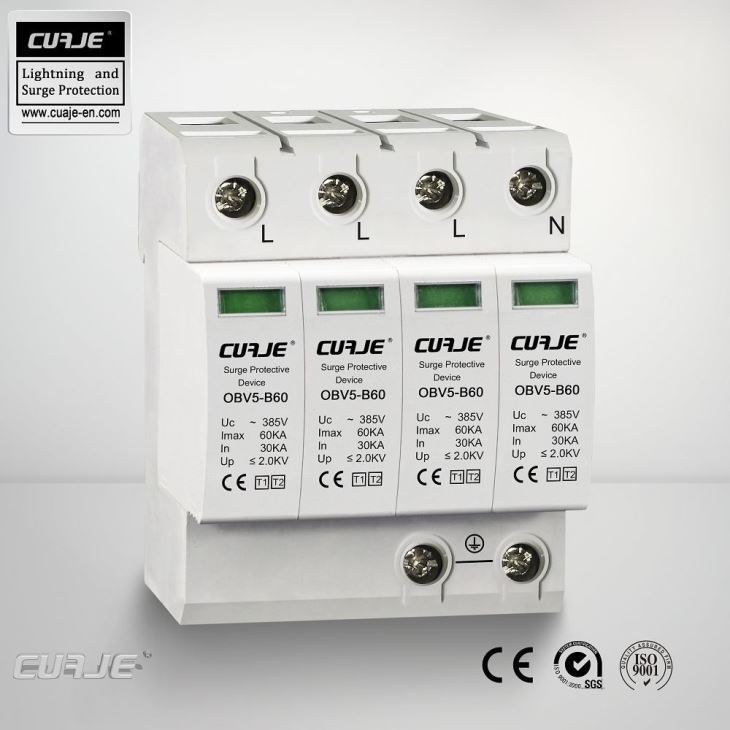

OBV5-B60/4P CUAJE Universal Varistor-Based Plug-In Lightning/Surge Arrester For 3-Phase Power Supply Networks With Separate N And PE (5-Conductor System: L1, L2, L3, N, PE).
Universal varistor-based plug-in lightning/surge arrester for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE).
The combination lightning current and surge arrestors OBV5-B60 meet the type 1+2 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary.
+ Connectable lightning current and surge arrestors
+ High arresting capacity up to 50 kA (10/350s)
+ Visual status display
+ Available with optional remote signalling
+ Vibration-proof
+ Combination arrestors for buildings with lightning protection
+ Simple standard hat rail mounting
+ Labelled connections
+ Usable in systems with lightning protection class 3+4
Manufacturer: Electronic Components
MFG Part #: OBV5-B60/4P
