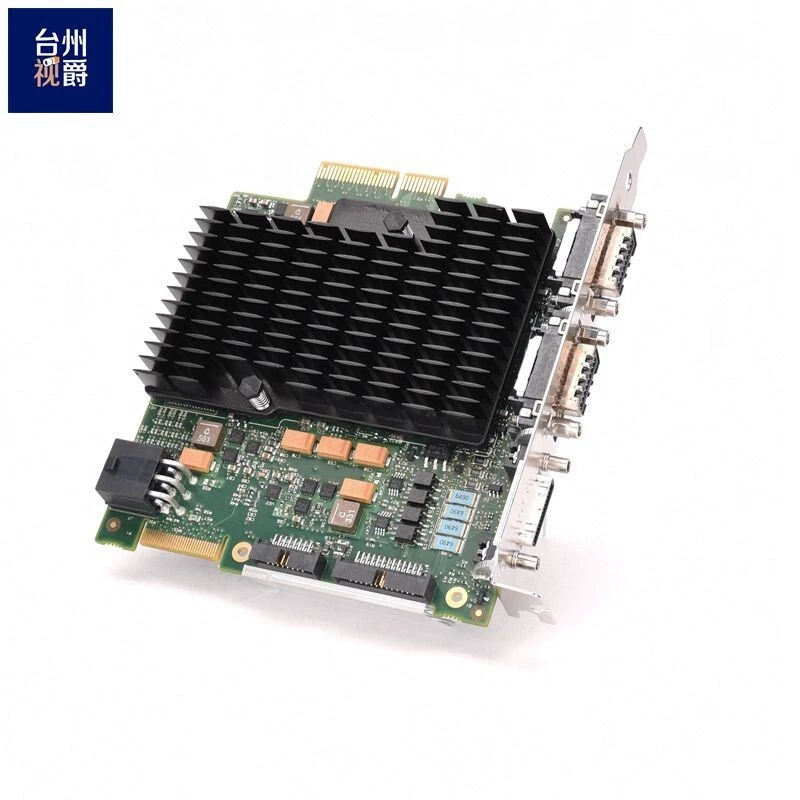

Xtium-CLHS PX8 Frame Grabbers Board
Building on the field proven capability of Teledyne DALSAs Xcelera frame grabber series, the Xtium-CLHS PX8 is based on AIAs CameraLink HS standard and uses PCI Express Gen 2.0 expansion bus to deliver high speed image acquisition and image transfer to the host memory. Xtium-CLHS uses industry standard CX4 cable to delivery up to 2.1 GB/s of image acquisition over a single cable to go beyond 15m and host transfer speeds of up to 3.2GB/sec – all in a compact, half-length, single slot solution.
The Xtium-CLHS features high-performance on-board, Data Transfer Engine (DTE) to deliver maximum bandwidth without the need for specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium-CLHS PX8 minimizes CPU usage and improves processing times for host applications. In addition, the Xtium series has been engineered with enhanced memory to meet the ever-increasing image resolution and faster frame rates of todays camera technology. And all Xtium-CLHS frame grabbers are built with Teledyne DALSA’s Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.
Specifications
Part Number OR-Y8S0-XPX70
Board Type PCIe
Host Bus PCIe Gen2 x8
Board Interface Camera Link HS
Connectors
Data Input: 1 x CX4 thumbscrew
Data Forward: 1 x CX4 thumbscrew
Controls:
1xDH60-27P (main bracket) for external Trigger input, strobe output, Quadrature Encoder input and General I/Os
1×26-pin shrouded header
Onboard 16-pin shrouded connector: For multi-board Board Sync
Camera Format CLHS Rev 1.0 1, 4, and 7 lane configurations
Pixel Clock N/A
Transmission Rate 3.25Gb/s and 5.0Gb/s
Bits per Pixel Mono8, Mono10, Mono12, and Mono16
GPIO 4-opto in (selectable threshold)(2-shared with ext. trig in); 8-output TTL(1-shared with strobe out)
Camera Control External Trigger input, Strobe out, Quadrature Encoder, Mulit-board Sync.
Frame Buffer 1024 MB
Features Data Forwarding, Board Sync Lookup table, user programmable 3×3 filter, Active Optical Cable (AOC) fiber cables ready
Software Sapera LT SDK, Sapera Vision Software
OS Support Windows 7 (32-bit), Windows 7 (64-bit), Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64
