Description

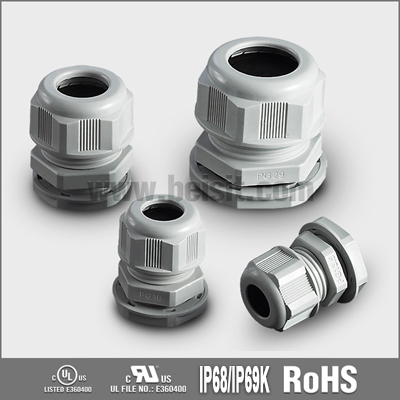

PG Type Nylon Cable Glands Material: PA (NYLON), UL 94 Hermetic seal: NBR, EPDM O-Ring: EPDM Working temperature: -40? to100? in static state Instantaneous heat resistance up to 120? -20? to 80? in dynamic state Instantaneous heat resistance up to 100? Color: Grey, Black, other colors
Material:PA (NYLON), UL 94
Hermetic seal:NBR, EPDM
O-Ring:EPDM
Working temperature:-40? to100? in static state
Instantaneous heat resistance up to 120?
-20? to 80? in dynamic state
Instantaneous heat resistance up to 100?
Color:Grey, Black, other colors customized.
| Thread | D | H | GL |
Wrench size |
Beisit No. | |
| mm | mm | mm | mm | Grey | Black | |
| PG7 | 3-6,5 | 54 | 8 | 16.5/15 | P0707SR | P0707SRB |
| PG7 | 2-5 | 54 | 8 | 16.5/15 | P0705SR | P0705SRB |
| PG9 | 4-8 | 63 | 8 | 19 | P0908SR | P0908SRB |
| PG9 | 2-6 | 63 | 8 | 19 | P0906SR | P0906SRB |
| PG11 | 5-10 | 78 | 8 | 22 | P1110SR | P1110SRB |
| PG11 | 3-7 | 78 | 8 | 22 | P1107SR | P1107SRB |
| PG13,5 | 6-12 | 90 | 9 | 24 | P13512SR | P13512SRB |
| PG13,5 | 5-9 | 90 | 9 | 24 | P13509SR | P13509SRB |
| PG16 | 10-14 | 100 | 10 | 27 | P1614SR | P1614SRB |
| PG16 | 7-12 | 100 | 10 | 27 | P1612SR | P1612SRB |
| PG21 | 13-18 | 114 | 11 | 33 | P2118SR | P2118SRB |
| PG21 | 9-16 | 114 | 11 | 33 | P2116SR | P2116SRB |
| PG7 | 3-6,5 | 54 | 15 | 16.5/15 | P0707SRL | P0707SRBL |
| PG7 | 2-5 | 54 | 15 | 16.5/15 | P0705SRL | P0705SRBL |
| PG9 | 4-8 | 63 | 15 | 19 | P0908SRL | P0908SRBL |
| PG9 | 2-6 | 63 | 15 | 19 | P0906SRL | P0906SRBL |
| PG11 | 5-10 | 78 | 15 | 22 | P1110SRL | P1110SRBL |
| PG11 | 3-7 | 78 | 15 | 22 | P1107SRL | P1107SRBL |
| PG13,5 | 6-12 | 90 | 15 | 24 | P13512SRL | P13512SRBL |
| PG13,5 | 5-9 | 90 | 15 | 24 | P13509SRL | P13509SRBL |
| PG16 | 10-14 | 100 | 15 | 27 | P1614SRL | P1614SRBL |
| PG16 | 7-12 | 100 | 15 | 27 | P1612SRL | P1612SRBL |
| PG21 | 13-18 | 114 | 15 | 33 | P2118SRL | P2118SRBL |
| PG21 | 9-16 | 114 | 15 | 33 | P2116SRL | P2116SRBL |
Beisit is a leading manufacturer and supplier for high-quality waterproof cable glands and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC, EN and UL. Beisit brand is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company can make a quick response to customization request.
Product Overview
Material: PA(NYLON), UL94V-2
Hermetic seal: NBR (optional material EPDM, Silicone Rubber, TPV)
O-Ring: EPDM (optional material Silicone Rubber, TPV, FPM)
Working temperature: -40? to 100?
Color: Grey(RAL7035), Black(RAL9005), other colors customized
Material options: V0, or F1 can be offered upon request.
Other material upon request.
All O rings are pre-assembled as standard.
Manufacturer Part Number: P1110
