Description

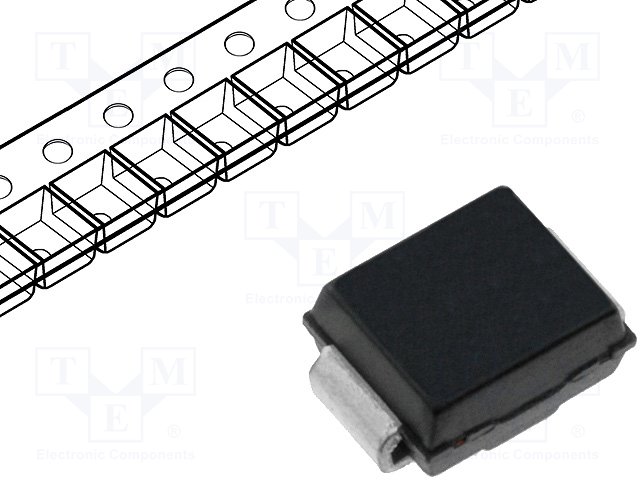

P6SMBJ28A PanJit Semiconductor Transil Diode, 600W, 31.1-34.5V, Unidirectional, DO214AA, RoHS
Key Features
Reverse Stand-off Voltage: 28 V
For surface mounted applications in order to optimize board space
Glass passivated junction
Low inductance
Plastic package has Underwriters Laboratory Flammability Classification 94V-O
High temperature soldering: 260C/10 seconds at terminals
Lead free in compliance with EU RoHs 2011/65EU directive
Green molding compound as per IEC61249 Std. (Halogen Free)
Manufacturer DIOTEC SEMICONDUCTOR
Type of diode transil
Power dissipation 600W
Max. off-state voltage 28V
Breakdown voltage 31.1…34.5V
Semiconductor structure unidirectional
Case DO214AA
Mounting SMD
Leakage current 5uA
Kind of package reel, tape
Manufacturer Part Number: P6SMBJ28A_R2_00001
Manufacturer: Panjit
