Description

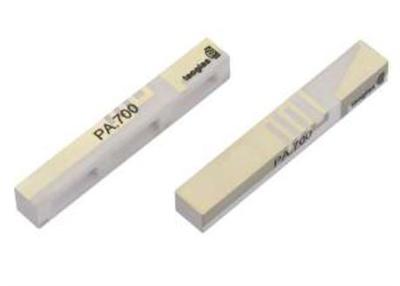

This revolutionary patent pending PA.700A Viking is a 2G/3G/4G High Efficiency SMD Ceramic antenna operating at 700MHz to 960MHz, 1710MHz to 2200MHz. It uses high grade ceramics to deliver the highest efficiencies on all bands on the shortest device ground-plane lengths possible. The exceptional wide-band response means it is the ideal antenna for LTE 700MHz applications that also need high efficiency 2G or 3G on lower and upper bands. 40mmX6mmX5mm SMD RoHS
Specifications
Manufacturer: Taoglas
Product Category: Antennas
RoHS: Details
Minimum Frequency: 868 MHz
Maximum Frequency: 2170 MHz
Product: PCB Antennas
Product Type: Cellular Antennas – GSM, LTE, 2G/3G/4G/5G
Application: 4G LTE, Cellular, CDMA
Mechanical Style: SMD
Gain: 2 dBi, 1.4 dBi, 0.9 dBi, 3.7 dBi, 3.9 dBi, 4.1 dBi
Impedance: 50 Ohms
VSWR: 3:1
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Number of Bands: 6 Band
Termination Style: Solder
Mounting Style: PCB Mount
Style: Ceramic
Protocol – Cellular, NBIoT, LTE: LTE
Length: 40 mm
Width: 6 mm
Height: 5 mm
Polarization: Linear
Packaging: Cut Tape
Packaging: Reel
Frequency: 698 MHz to 960 MHz, 1710 MHz to 2170 MHz
Technology: 4G LTE, Cellular, CDMA
Brand: Taoglas
Moisture Sensitive: Yes
Factory Pack Quantity: 100
Subcategory: Antennas
Part # Aliases: PA.700
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type Chip
VSWR 3
Gain 2dBi, 1.4dBi, 0.9dBi, 3.7dBi, 3.9dBi, 4.1dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.197″ (5.00mm)
Applications
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
Number of Bands 6
Manufacturer Part Number: PA.700.A
Manufacturer: Electronic Components
