Description

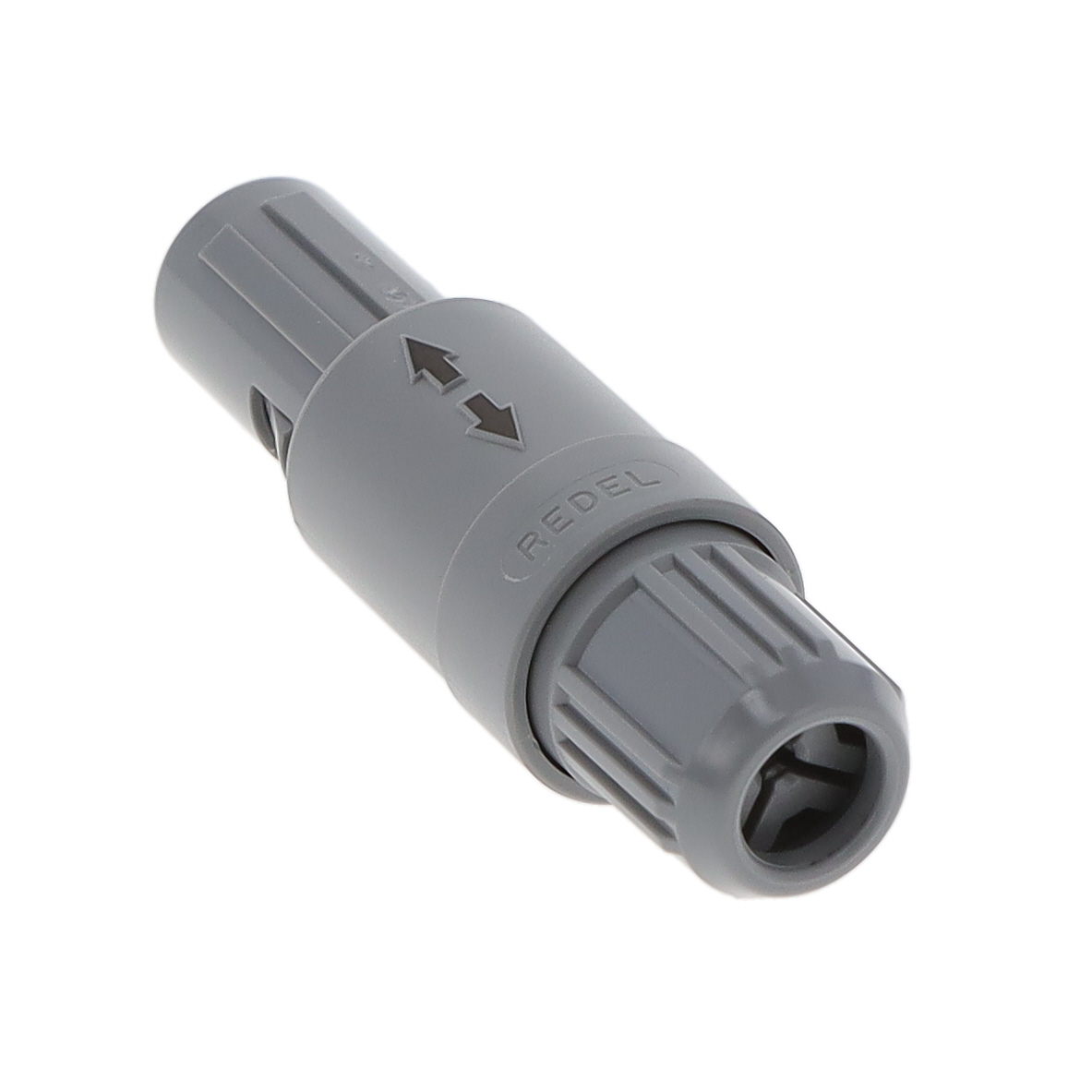

PAA.M1.0GL.AC20G Lemo Push-Pull, Detent Lock Plastic Connector Plug, Male Pins 10 Position 3A 0.067″ ~ 0.079″ (1.70mm ~ 2.00mm) IP50 – Dust Protected Free Hanging (In-Line) Unshielded – Backshell Solder Cup
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polysulfone (PSU)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Male Pins
Number of Positions: 10
Shell Size – Insert: 10
Orientation: A
Current Rating: 3A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PAA.M1.0GL.AC20G
Manufacturer: Lemo
Datasheet: Datasheet
