Description

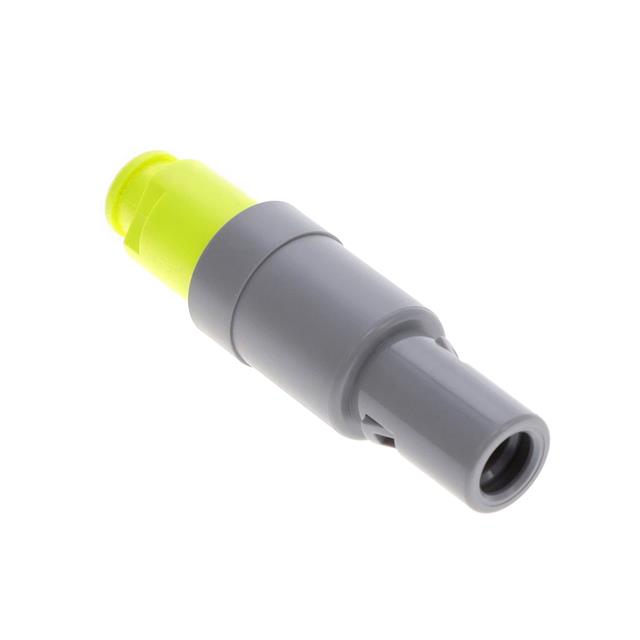

PAB.M0.8GL.AC39JZ Lemo Push-Pull, Detent Lock Plastic Connector Plug, Male Pins 8 Position 5A 0.106″ ~ 0.154″ (2.70mm ~ 3.90mm) IP50 – Dust Protected Free Hanging (In-Line) Unshielded – Backshell Solder Cup
Color: Gray, Yellow
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polysulfone (PSU)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Male Pins
Number of Positions: 8
Shell Size – Insert: 8
Orientation: B
Current Rating: 5A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PAB.M0.8GL.AC39JZ
Manufacturer: Lemo
Datasheet: Datasheet
