Description

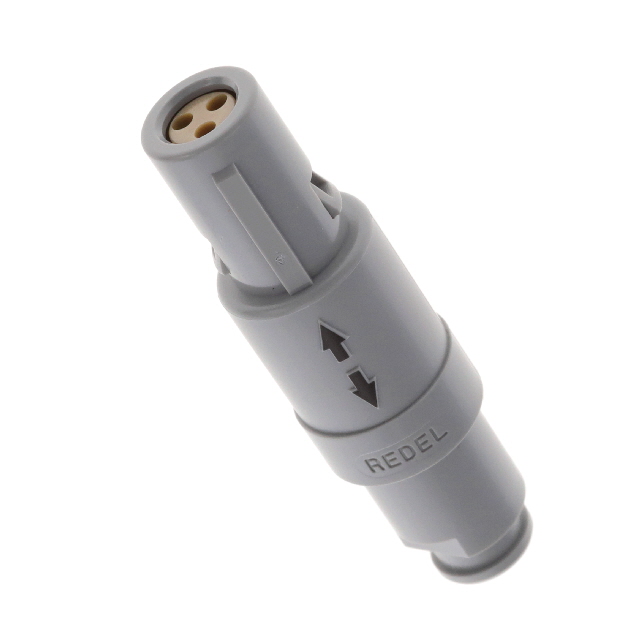

PAH.N0.3GL.LC65GZ Lemo Push-Pull, Detent Lock Plastic Connector Plug, Female Sockets 3 (Power) Position 9A 250VAC 0.209″ ~ 0.256″ (5.30mm ~ 6.50mm) IP50 – Dust Protected Free Hanging (In-Line) Unshielded – Backshell Solder Cup
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polysulfone (PSU)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Female Sockets
Number of Positions: 3 (Power)
Shell Size – Insert: 3 (Power)
Orientation: H
Current Rating: 9A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PAH.N0.3GL.LC65GZ
Manufacturer: Lemo
Datasheet: Datasheet
