Description

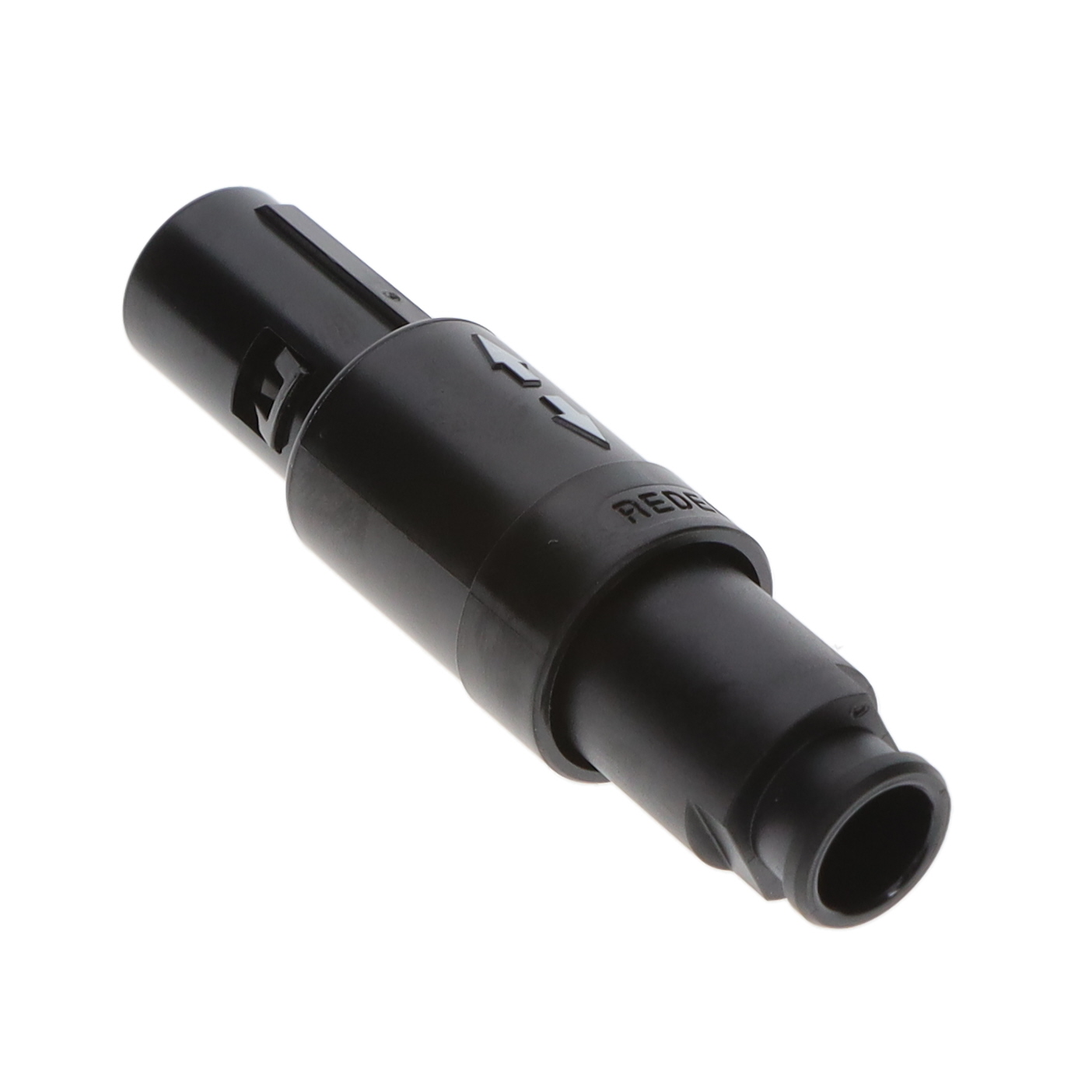

PAJ.M1.2TL.LC52NZ Lemo Push-Pull, Detent Lock Plastic Connector Plug, Female Sockets 12 Position 7A 0.157″ ~ 0.205″ (4.00mm ~ 5.20mm) IP50 – Dust Protected Free Hanging (In-Line) Unshielded – Backshell Solder Cup
Color: Black
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polyetherimide (PEI)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Female Sockets
Number of Positions: 12
Shell Size – Insert: 12
Orientation: J
Current Rating: 7A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: PAJ.M1.2TL.LC52NZ
Manufacturer: Lemo
Datasheet: Datasheet
