Description

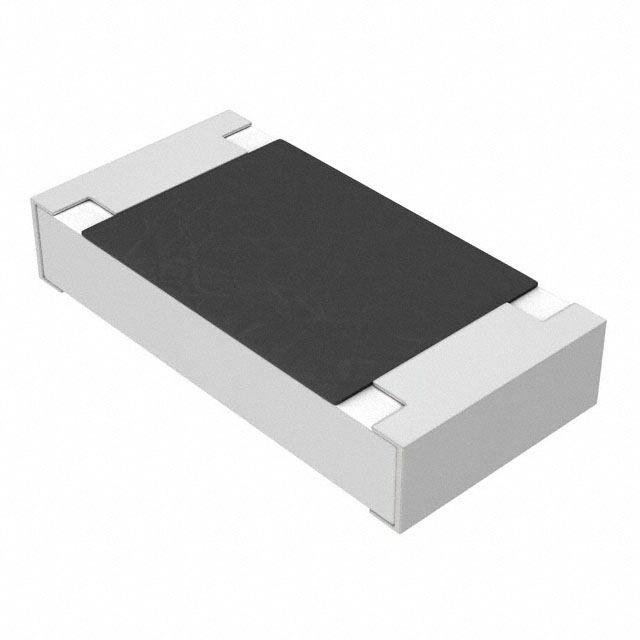

Panasonic Electronic Components ERJ-8ENF1001V THICK FILM RESISTOR, 1K, 250mW, 1%, 1206, FULL REEL, Product Range:AEC-Q200 ERJ Series, Resistance:1kohm, Power Rating:250mW, Resistance Tolerance: 1%, Voltage Rating:200V, Resistor Case Style:1206 [3216 Metric]
Manufacturer: Panasonic
Product Category: Thick Film Resistors – SMD
RoHS: RoHS Compliant By Exemption Details
Resistance: 1 kOhms
Power Rating: 250 mW (1/4 W)
Tolerance: 1 %
Temperature Coefficient: 100 PPM / C
Voltage Rating: 200 V
Case Code – in: 1206
Case Code – mm: 3216
Operating Temperature Range: – 55 C to + 155 C
Brand: Panasonic
Case Height: 0.6 mm
Case Length: 3.2 mm
Case Width: 1.6 mm
Package / Case: 1206 (3216 metric)
Packaging: Reel
Product: Thick Film Resistors SMD
Series: ERJ
Factory Pack Quantity: 5000
Type: Precision Thick Film Resistors SMD
- Small size and lightweight
- -55 to 155°C Temperature range
Applications
Features & Benefits:
- Small size and lightweight
- High reliability : Metal glaze thick film resistive element and three layers of electrodes
- Suitable for both reflow and flow soldering
- Improved high-power/resistance to pulse characteristics by double-sided resistive elements structure
- Low Resistance Value
Manufacturer Part Number: ERJ-8ENF1001V
Manufacturer: Panasonic
